Tractor Mounted Pole Diging Hole Digger Erection Machine

Tractor Mounted Pole Diging Hole Digger Erection Machine

    • Tractor Mounted Pole Diging Hole Digger Erection Machine
    • Tractor Mounted Pole Diging Hole Digger Erection Machine
    • Tractor Mounted Pole Diging Hole Digger Erection Machine
    • Tractor Mounted Pole Diging Hole Digger Erection Machine
    • Tractor Mounted Pole Diging Hole Digger Erection Machine
    • Tractor Mounted Pole Diging Hole Digger Erection Machine
  • Tractor Mounted Pole Diging Hole Digger Erection Machine

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: BS1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD22000-45000 / SET
    Packaging Details: Export standard package
    Supply Ability: 600 sets/month
    Contact Now
    Detailed Product Description
    Model Number: BS1000 Color: Customer's Request
    Drilling Diameter: 2M Drilling Depth: 100-6000MM
    Power: 100HP OEM: Yes
    Bit Material: Alloy Steel Weight: 7000KGS
    Warranty: 12 Months

    Product Description

    Tractor Mounted Pole Diging Hole Digger Erection Machine



    Tractor: YTO tractor(famous brand)

    Drilling depth:0-6m
    Drilling diameter: 300mm-2000mm
    Standard drill pipe: 300mm-500mm (can customize 500~1200mm drill pipes)
    Lift way: Hydraulic
    Standard drilling time: 50s (diameter of 300mm-500mm)
    Application: loess, clay, pebble sand, weathered granite, tundra etc.
    Not suitable for: rocks, whole sand bed ,household garbage and so on.
    Operator needed: 1 person



    Technical Parameters



    Model BS-850 BS-1004 BS-1004H
    Drive type 4*2 4*4 4*4
    Power 85HP 100HP 110HP
    Steering system Hydraulic system Hydraulic system Hydraulic system
    Bit material Alloy steel Alloy steel Alloy steel
    Drill pipe reamer material Manganese steel Manganese steel Manganese steel
    Hole diameter(mm) 100-2000 100-2000 100-2000
    Hole depth(mm) 100-6000 100-6000 100-6000
    Overall size(L*W*H) mm 5520*2100*2884 6520*2170*2894 7520*2170*2994
    Weight(T) 6.5 6.8 7.1
    Hoisting machine 3T, 5T, 8T 5T, 8T, 10T 8T, 10T, 12T
    Dig a pit speed(/sec) 25-60 25-60 25-60



    Widely Application

    This kind of machine is fastest method to dig up hole as it is driven by P.T.O, which can can dig up to the depth of 5.5 feet depending up on the soil properties,

    and widely useful for plantation & fencing, digging pits to plant mango, coconut, sugarcane (Pith system cultivation), Teak, Pomegranate, etc.

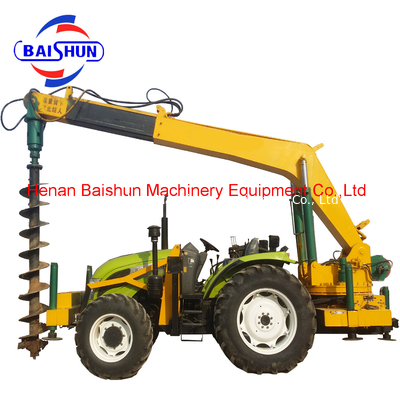

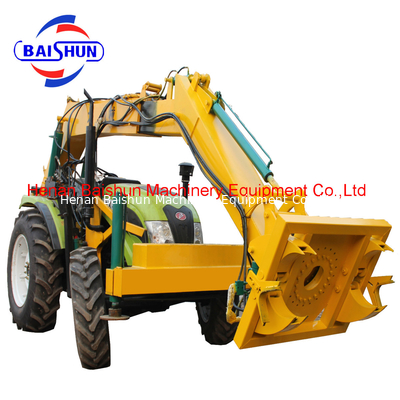

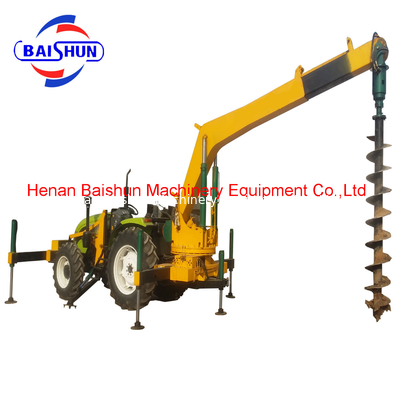

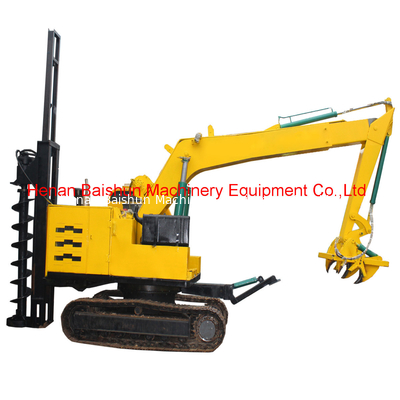

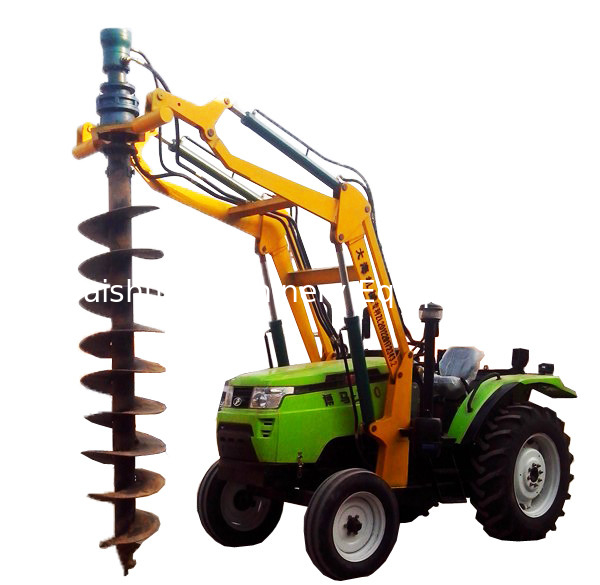

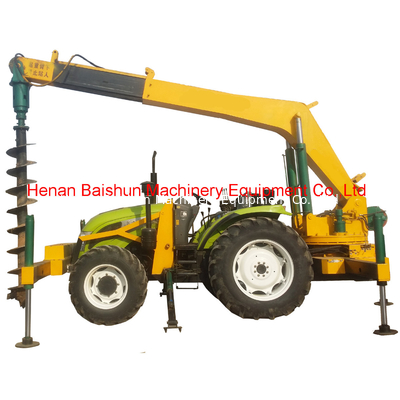

    Product Photos

    Tractor Mounted Pole Diging Hole Digger Erection Machine

    Tractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection Machine



    Delivery Photos

    Tractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection MachineTractor Mounted Pole Diging Hole Digger Erection Machine



    Our Services

    1.Professional service and product knowledge

    2.We keep the service philosophy: think what customer cares, do what client wants.

    3.Professional service after-sale will be offered.

    4.Good price and high quality.

    5.We're a trusted cooperated group!
