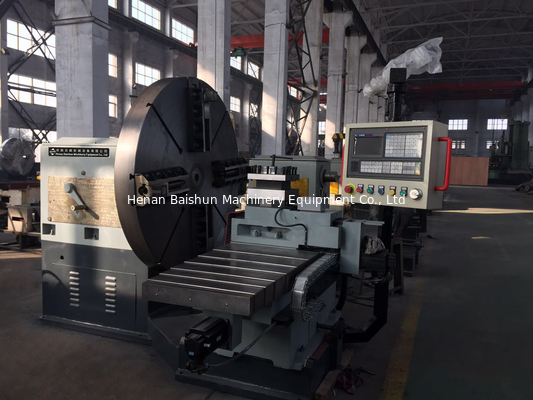

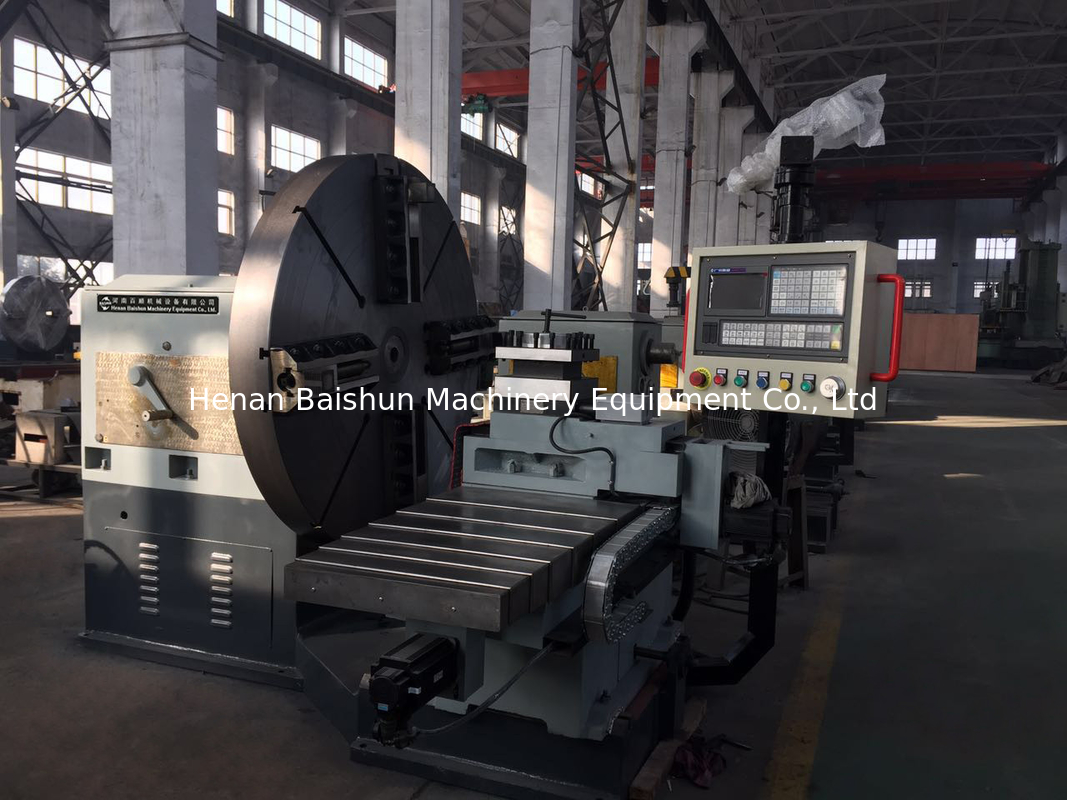

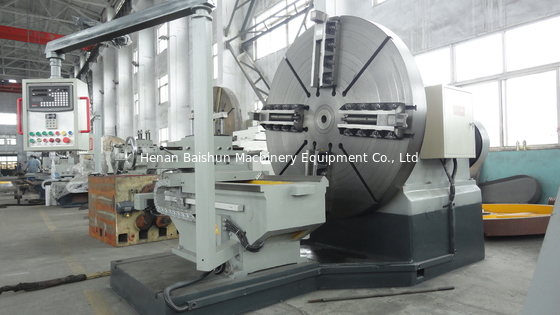

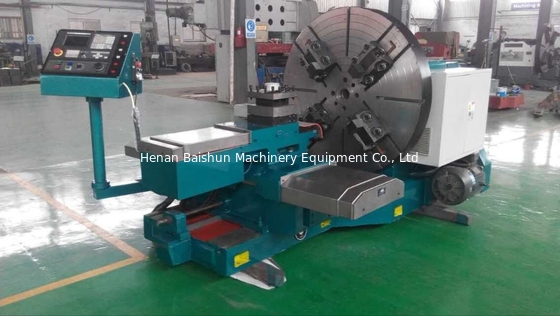

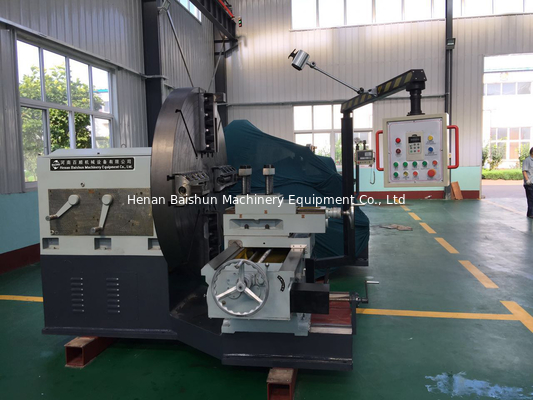

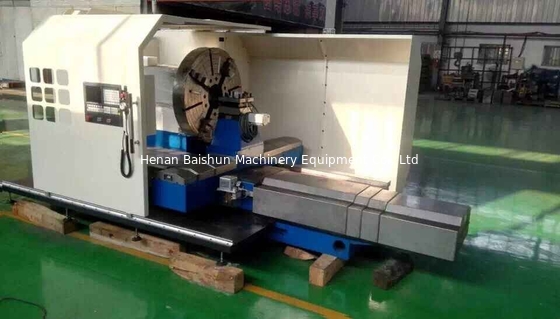

Face Lathe machine used for processing flange or disc workpiece

Face Lathe machine used for processing flange or disc workpiece

    • Face Lathe machine used for processing flange or disc workpiece
    • Face Lathe machine used for processing flange or disc workpiece
    • Face Lathe machine used for processing flange or disc workpiece
    • Face Lathe machine used for processing flange or disc workpiece
    • Face Lathe machine used for processing flange or disc workpiece
  • Face Lathe machine used for processing flange or disc workpiece

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008
    Model Number: C6020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-30000 USD/SET
    Packaging Details: Prepackage
    Delivery Time: 20 DAYS
    Payment Terms: T/T
    Supply Ability: 20 SETS/MONTH
    Contact Now
    Detailed Product Description
    Turning Diameter: 1600mm Function: Processing Flange, Disc Kind Workpiece
    Turning Length: 400mm Produce Name: Face Lathe Machine
    Usage: End Face Turning And Facing Color: Green Or Customized By Customer

    This kind of face lathe is widely applied to many industries such as rubber machinery, mine machinery,automobile manufacturing, aviation and shipbuilding, nuclear power equipment and chemical machinery and so on, mostly suitable for processing large-diameter tire moulds, large diameter flange,

    various valves pipelines,steamer machine accessories and helical supports and other workpieces.



    Specifications

    standing facing lathe machine
    High quality with low price
    Operate simple,performance stable
    ISO9001:2008 Certification

    Standing lathe



    1.Function characteristics

    The company produces various models of ground lathe also named face lathe machine; also produce horizontal lathe machine, vertical lathe, with the weight of large, rigid, and easy to operate, powerful, and many other advantages. And has a CNC vertical lathe, boring machine large landing, automatic gap submerged arc welding, electro-optical tracking cutting machine and a variety of measurement test equipment. Besides, using the vertical lathe to turn vanes can eliminate the defects that a floor-type horizontal machine is low in rotary speed, unstable in slewing and the like.



    landing facing lathe machine is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
    This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.



    1. Geared Head Engine Lathe is floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

    2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

    3. All the gears are precision grounded, with long life and low noise;

    4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece

    Face Lathe machine used for processing flange or disc workpiece



    Name of Parameters Model and unit C6016
    Chuck diameter mm 1000/1200
    Max. turning diameter mm 1600
    Maximum length of workpiece mm 400
    Lathe bed carrige horizontal stroke mm 880
    Lathe bed carrige horizontal stroke mm 400
    Biggest workpiece weight ton 3
    Power of main motor kw 11
    Spindle speed r/min 16-128
    Spindle diameter mm 180
    Knife into to the way infinitely variable frequency
    Horizontal stroke mm 320
    Longitudinal travel mm 800
    Machine weight T 5



    Name of Parameters Model and unit C6020
    Chuck diameter mm 1600
    The diameter of the slalom mm 2000
    Maximum length if work pieces mm 400
    Biggest workpiece weight T 5
    Power of main motor KW 15
    Spindle speed r/min 12-94
    Spindle diameter mm 200
    Knife into to the way infinitely variable frequency
    Horizontal stroke mm 320
    Longitudinal travel mm 900
    Machine self-respect T 8
