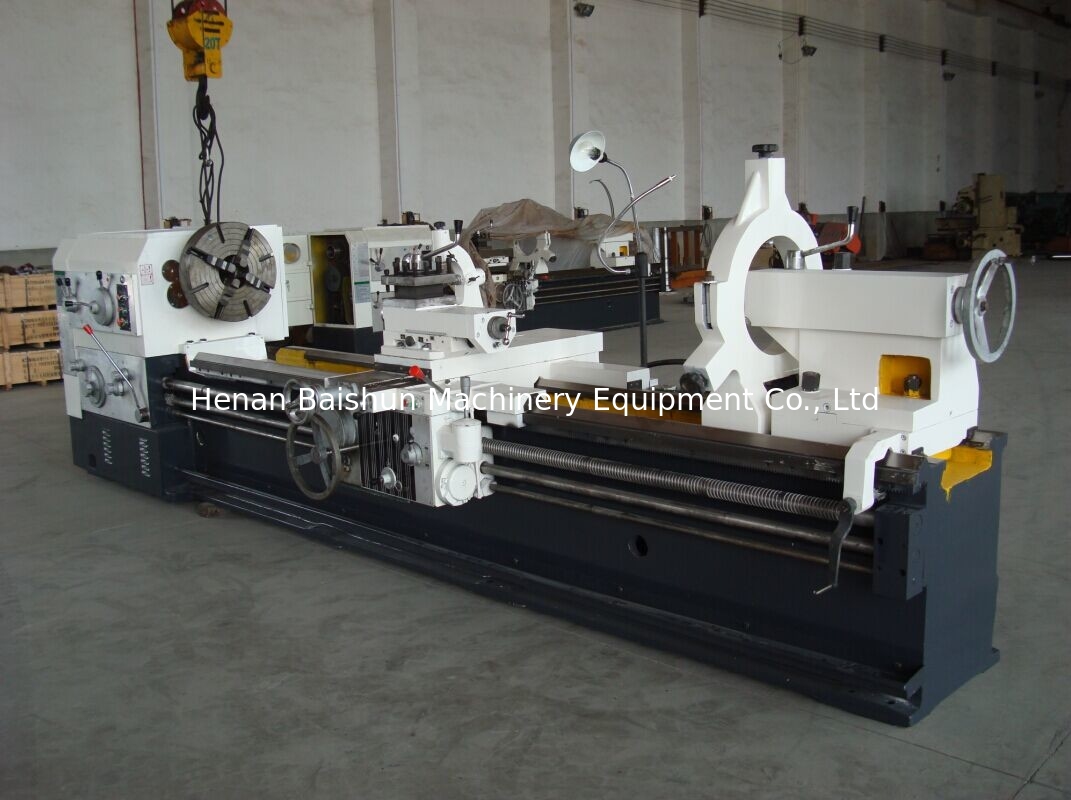

CW6180/CW6280 Horizontal Lathe Machine for Metalwork Turning
CW6180 and CW6280 Conventional Lathe Machine and Metal Turning Lathe Machine
Product Description:
CW6180/CW6280 conventional horizontal type lathe machine is universal metal machining equipment for metal processing,mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surfaces, and turning internal and external pipe threads such as metric,inch,module,DP threads etc.,meanwhile this series is also used to drill holes in bar material and make oil groove
This series lathe is able to process metal materials including cast iron,steel and non-ferrous metals
Main Features:
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-way are hard enough for good wear-resistance;
Headstock gears hardened and precision ground to achieve high precision and low noise.
Advantage:
We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.
The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better.
The 3 boxes of lathe were processed by Taiwan’s CNC boring and milling machine center. The other tools are processed by CNC lathe and machine center to ensure the precision of the box and tools.
First step of the accuracy test of the equipment is testing the repeat accuracy of X and Y axis with Renishaw laser interometer imported from Britain. After that, inspecting and accepting the whole equipment based on the enterprise standards, guarantee the accuracy of the machine tool.
Technical Parameters:
SPECIFICATIONS:
| ITEMS | CW6163/CW6263 | CW6180/CW6280 |
| Max. swing over bed | Ø630 mm | Ø800 mm |
| Max. swing over carriage | Ø350 mm | Ø480 mm |
| * Max. swing over gap | Ø830 mm | Ø1000 mm |
| Width of bed | 560 mm |
| *Effective length of gap | 310 mm |
| Max. length of work piece(two centers) | 1000/1500/2000/3000/4000 -20000mm |
| Max. turning length | 650/1150/1650/2650/3650 mm |
| Max. Weight of work piece(between centers) | 2000kg |
| Spindle nose | D11 |
| Spindle bore | Ø105 mm |
| Cone hole diameter and taper of spindle hole | Metric Ø120 1:20 |
| Number of speeds | 18 |
| Spindle speed scope | 7.5~1000 r/min |
| Pitch of longitudinal ball screw/diameter | 12 mm/ Ø55 |
| Number of longitudinal feeds | 64 |
| Range of longitudinal feeds(1:1) | 0.1~1.52 r/min |
| Range of longitudinal feeds(16:1) | 1.6~24.3 r/min |
| Number of cross feeds | 64 |
| Range of cross feeds | half of longitudinal feeds |
| Rapid traverse for longitudinal | 4000 mm/min |
| Rapid traverse for cross | 2000 mm/min |
| Thread cutting & range/no. for Metric pitch threads | 1~240 mm/50 |
| Thread cutting & range/no. for Whit-worth pitch threads | 14~1 TPI/26 |
| Thread cutting & range/no. for Module threads | 0.5~120 mm/53 |
| Thread cutting & range/no. for D.P. threads | 28~1 DP/24 |
| Vertical distance from spindle center to installing basis | 33 mm |
| Size of tool shank | 32×32 mm |
| Max. travel of cross slide | 440 mm | 480 mm |
| Swing angle of tool post | ±90° |
| Max. travel of top slide | 200 mm |
| Tailstock taper of bore | M.T.NO.6 |
| Tailstock sleeve travel | 230 mm |
| Tailstock sleeve dia. | Ø100 mm |
| Power of main motor | 11KW |
| Rapid feed motor power | 1.1KW |
| Power of cooling pump | 90W |
| 3m Overall dimensions(L×W×H) | 3275/3725/4225/5225/6275×1393×1537mm |
| Net weight(3m) | 3400/3700/4200/4700/5800g | 3600/3900/4400/4900/6000g |
