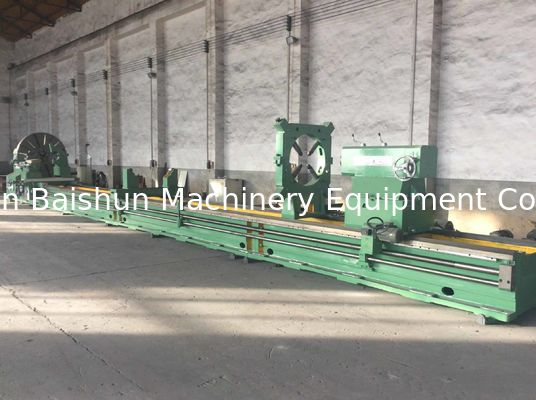

CW61250 Horizontal Lathe Machine(16tons load capacity)

Home Products Horizontal Lathe Machine (CW61125, CW61160, CW61200, CW61250, bed width=1100mm, 16T load)

CW61250 Horizontal Lathe Machine(16tons load capacity)

Product Details:

Place of Origin:	China
Brand Name:	BAISHUN
Certification:	ISO9001:2008; CE.
Model Number:	CW61250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	40000-60000
Packaging Details:	Export standard package

Contact Now

Detailed Product Description

Swing Over Bed:	2500mm	Swing Over Carriage:	2000mm
Load Capacity:	16 Tons

CW61250 Horizontal Lathe Machine(16tons load capacity)

Such heavy duty lathe machines have following features:

1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.

2. can also be used for drilling, boring trepanning etc.

3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.

4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.

Main Technical Data

Specifications	Unit	CW61250×5000	CW61250×6000	CW61250×7000	CW61250×8000	CW61250×10000
Max. swing over bed	mm	2500	2500	2500	2500	2500
Max. swing over carriage	mm	2000	2000	2000	2000	2000
Max. length of workpiece	mm	5000	6000	7000	8000	10000
Max. length to be machined	mm	4800	5800	6800	7800	9800
Max. width of bed	mm	1100
Max. weights of workpiece between centers	T	16	16	16	16	16
Spindle nose	mm	ISO A2-15
Taper in spindle hole		metric No. 120	metric No. 120	metric No. 120	metric No. 120	metric No. 120
Spindle bore	mm	130	130	130	130	130
Spindle Speed	rpm	Range 2~200, manual 21 steps
No. of longitudinal and cross feeds		97 kinds
Feed range per rev. of spindle	mm	Longitudinal, 0.064 ~ 12 Cross, 0.032~6
Top slide feed	mm	0.032~ 3	0.032~ 3	0.032~ 3	0.032~ 3	0.032~ 3
Metric threads	mm	45 kinds; 1 ~ 120	45 kinds; 1 ~ 120	45 kinds; 1 ~ 120	45 kinds; 1 ~ 120	45 kinds; 1 ~ 120
Whitworth threads		42 kinds, 30 ~ 1/4
Module threads	t.p.i.	46 kinds; 0.5 ~ 60	46 kinds; 0.5 ~ 60	46 kinds; 0.5 ~ 60	46 kinds; 0.5 ~ 60	46 kinds; 0.5 ~ 60
Pitch threads	mm	46 kinds; 0.5~ 60
Travel of cross slide		1020	1020	1020	1020	1020
Travel of middle slide (longitudinal)	mm	400
Travel of tool post	mm	200	200	200	200	200
Rapid traverse speed	mm	Saddle, 3740
Cross slide	mm/min	1870	1870	1870	1870	1870
Tool post	mm/min	935	935	935	935	935
Type of tool post		Common, square
Size of tool	mm	45 × 45	45 × 45	45 × 45	45 × 45	45 × 45
Travel of quill	mm	300	300	300	300	300
Taper in quill		80 mm; 1:7
Power of main motor	kW	AC 30	AC 30	AC 30	AC 30	AC 30
Power of rapid motor	kW	1.5
Power of pump motor	kW	0.45	0.45	0.45	0.45	0.45
Power of cooling motor	kW	0.15
Electrical power		According to user’s requirements
