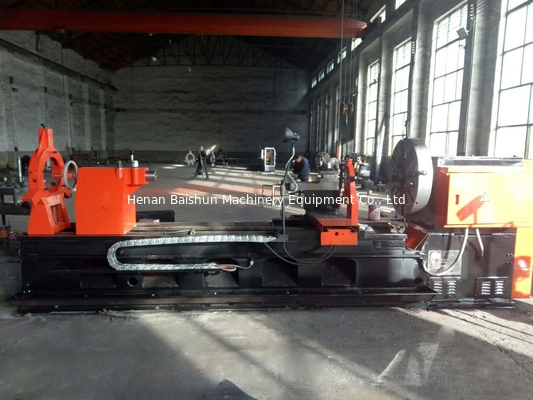

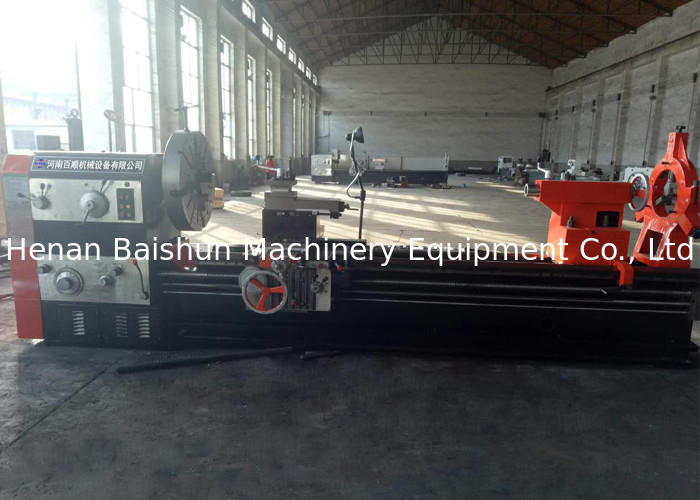

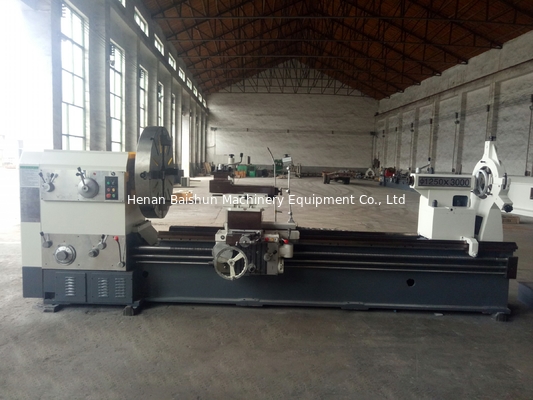

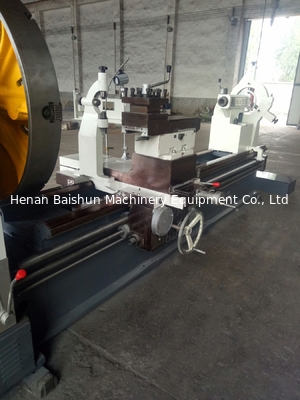

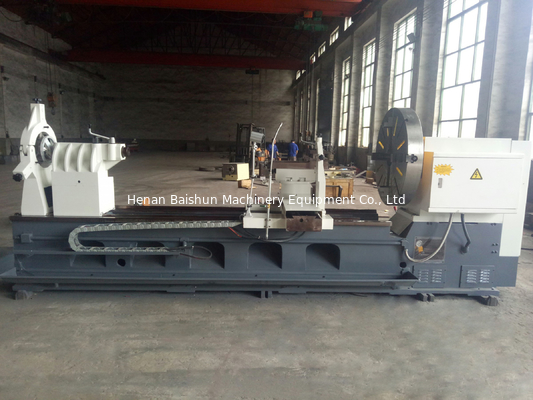

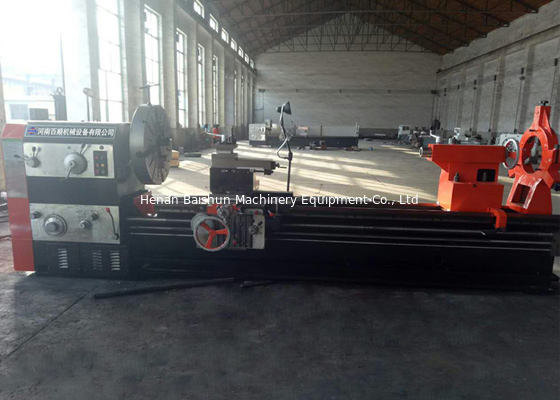

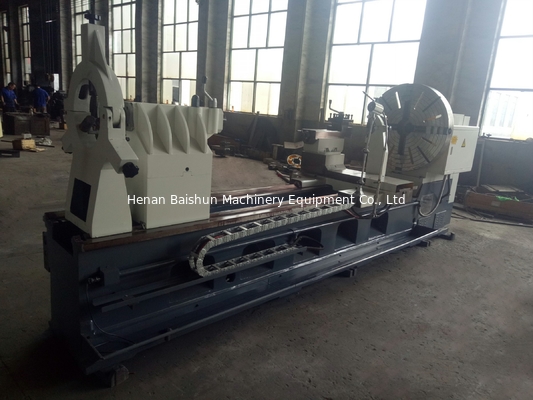

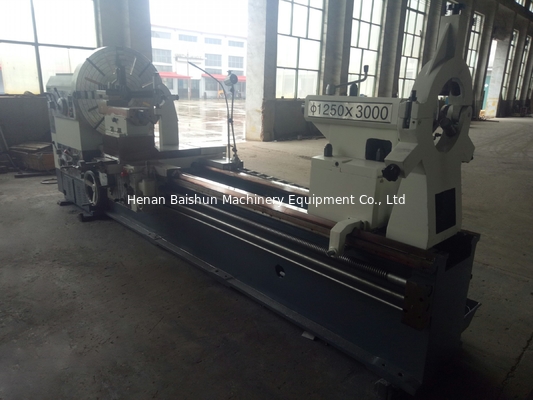

CW61125Q conventional horiozontal lathe machine for sale

CW61125Q conventional horiozontal lathe machine for sale

    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
    • CW61125Q conventional horiozontal lathe machine for sale
  • CW61125Q conventional horiozontal lathe machine for sale

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: CW61100Q

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 8000-12000
    Packaging Details: Export standard package
    Contact Now
    Detailed Product Description
    Swing Over Bed: 1250mm Swing Over Carriage: 700mm
    Load Capacity: 2tons Guide Rail Width: 600mm
    Main Motor Power: 11kw

    Machine advantage

    1. This machine is very suitable for the use of batch processing of production and machine repair workshop.
    2. The processed dimension accuracy of parts can reach level IT7 on this machine, and surface roughness can reach level 1.6.
    3. The machine worktable Configuration with fast moving device, overload safety device, vertical and horizontal cross handle nut handle.



    CW61125Q conventional horiozontal lathe machine for sale

    CW61125Q conventional horiozontal lathe machine for sale



    Machine parameters


    CW621253000mm×2.5T Horizontal Lathe Machine
    CAPACITY
    Max.swing over bed 1250mm
    Max.swing over gap 1400mm
    Max.swing over cross slide 860mm
    Max.length of workpiece 3000mm
    Max. weight of workpiece 2.5 tons
    Width of bed 600mm
    HEAD STOCK
    Spindle hole 105mm
    Spindle taper 120mm 1:16
    Spindle speeds 5.4-720r/min
    FEEDS
    Metric threads mm 44;1-120
    Inch threads TPI 31;28-1/4
    Module threads mm 45;0.5-60
    Diametral threads DP 38;56-1/2
    Longitudinal feeds range 0.1-24.3mm/r
    KNIFE REST
    Max.cross travel of lower knife rest 740mm
    Max.cross travel of upper knife rest 300mm
    Tool section 45*45mm
    TAILSTOCK
    Sleeve diameter 100mm
    Sleeve travel 300mm
    Sleeve taper Morse 6#
    MOTOR
    Main motor 11kw
    SIZE AND WEIGHT
    Machine size 6100×1393×2020
    Machine weight(about) 7.5 Tons
    Accessories:
    1. Four-jaw Chuck (1000mm).
    2. Center rest
    3. Follow rest
    4. Center
    5. Leveling iron pads
    6. Foundation bolts
    7. Chuck wrench
    8. Knife rest worktable wrench
    9. Manual book
