Place of Origin: | China |
Brand Name: | BAISHUN |
Certification: | ISO9001:2008; CE. |
Model Number: | BS-SP600 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD1000-30000 / SET |
Packaging Details: | Export standard package |
Delivery Time: | 30 working days |
Supply Ability: | 600 sets/month |
Model Number: | BS-SP600 | Spindle Bore: | 82 Mm |
---|---|---|---|
Spindle Motor Power: | 11 Kw | Amount Of Rollers: | Sync 2+ |
Max. Diameter Of Material: | 600 Mm | Max. Swing Over Slide: | 400 Mm |
Max. Length Of Work Piece: | 500 Mm | Width Of Bed: | 850 Mm |
System: | FANUC, SIEMENS, GSK, KND | Weight: | 3500 Kg |
Warranty: | 12 Months |

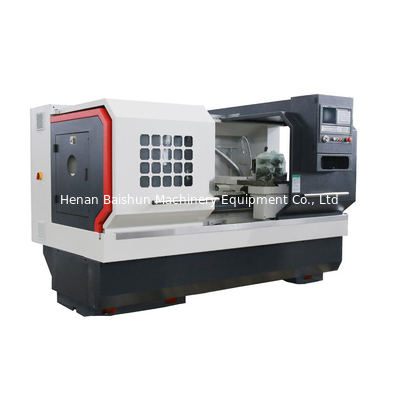

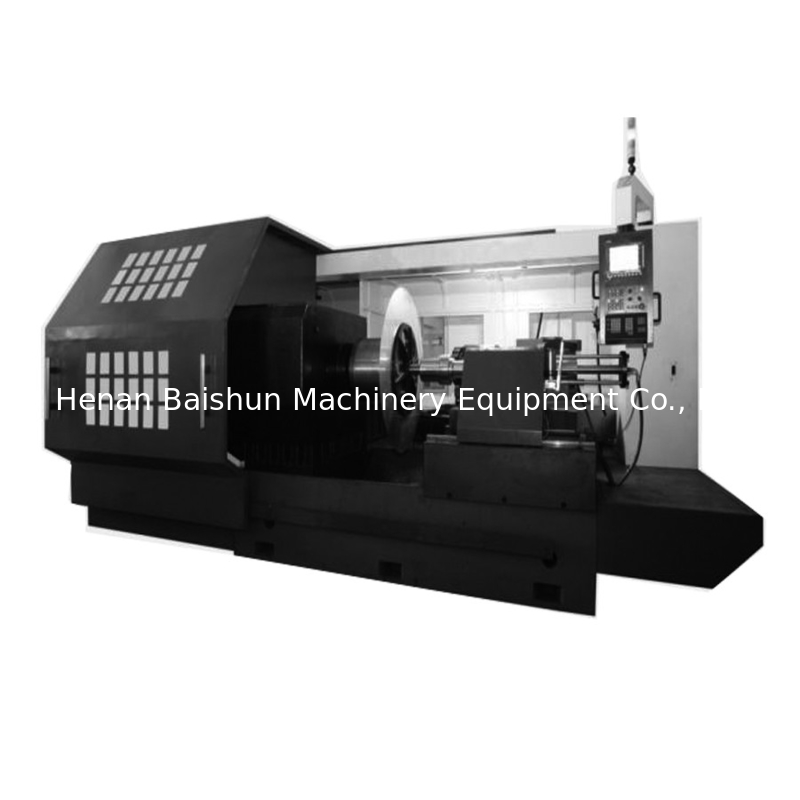

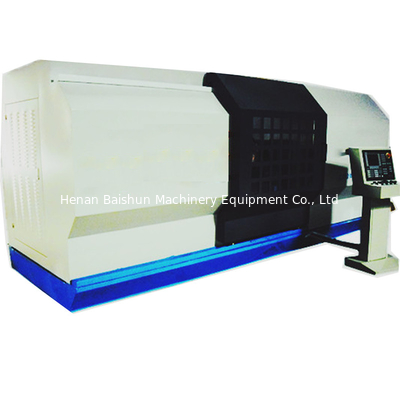

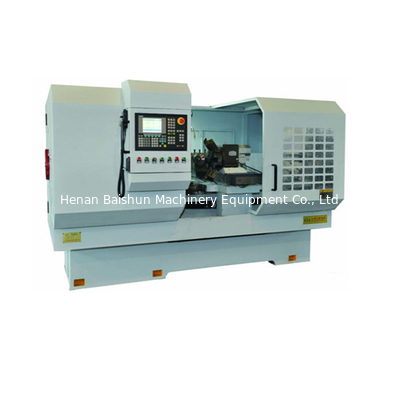

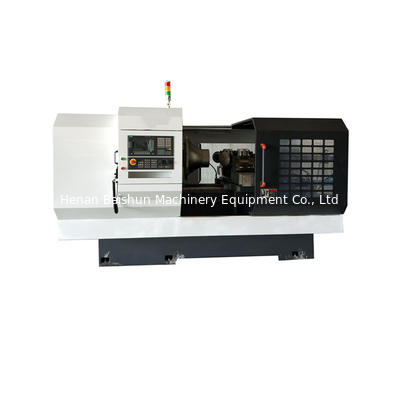

Spinning machine stainless steel utensils kitchenware cookware/pot making machine
Features:
Blank Diameter: 5-1400mm
Spin Material Thickness:
Aluminum: 0.3-2.0 mm
Copper: 0.5-2.0mm
Iron and steel: 0.5-1.5 mm
Stainless steel: 0.5-0.6mm
Spin materials: steel, alloy and copper etc.
Easy to operate with advanced digital control.
Improve the production efficiency, machining accuracy and save the cost of human resources.
Application: light, automobile, military, mechanic and other industries.
Product Description:
CNC Spinning and Turning Machine Technical Parameters | |
Model | BS-SP600 |
Amount of Rollers | Sync 2+ |
Max. Diameter of Material | Φ600 mm |
Max. Swing Over Slide | Φ400 mm |
Max. Length of Work Piece | 500 mm |
Thickness of Work Piece |
0.5-4.0 mm (Aluminum, Copper) 0.5-3 mm (Carbon Steel) 0.5-2.0 mm (Stainless Steel) |
X Travel | 300 mm |
Z Travel | 650 mm |
Pushing Force for X Axis | 35 kN |
Pushing Force for Z Axis | 35 kN |
Pushing Force of Tailstock | 30 kN |
Guide Rail Type | Linear Guide Rail |
Width of Bed | 850 mm |
Rapid Traverse X/Z | 10/15 m/min |
Servo Power X/Z | 15/10 N.m |
Pulse Equivalent X/Z | 0.001 mm |
Positioning Accuracy | 0.015 mm |
Repetitive Positioning Accuracy | 0.008 mm |
Spindle Nose | D8 |
Taper of Spindle Bore | 90(1:20)Metric |
Spindle Bore | Φ82 mm |
Spindle Speed | 2500 rpm |
Taper of Tailstock Quill | MT5 |
Travel of Tailstock | 300 mm |
Travel of Tailstock Quill | 450 mm |
Diameter of Tailstock Quill | Φ85 mm |
Amount of Tools / Shank Size | 4+4/30x30 mm² |
Spindle Motor Power | 11 kw |
Machining Accuracy |
It 6 |
Surface Roughness | Ra 1.25 |
Overall Dimensions | 3.2x2.0x1.8 m³ |
Net Weight | 3500 kg |
Application:
Our Service:
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
