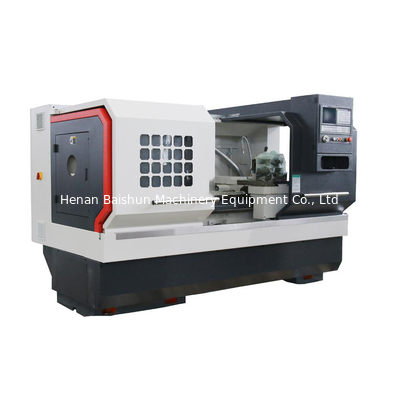

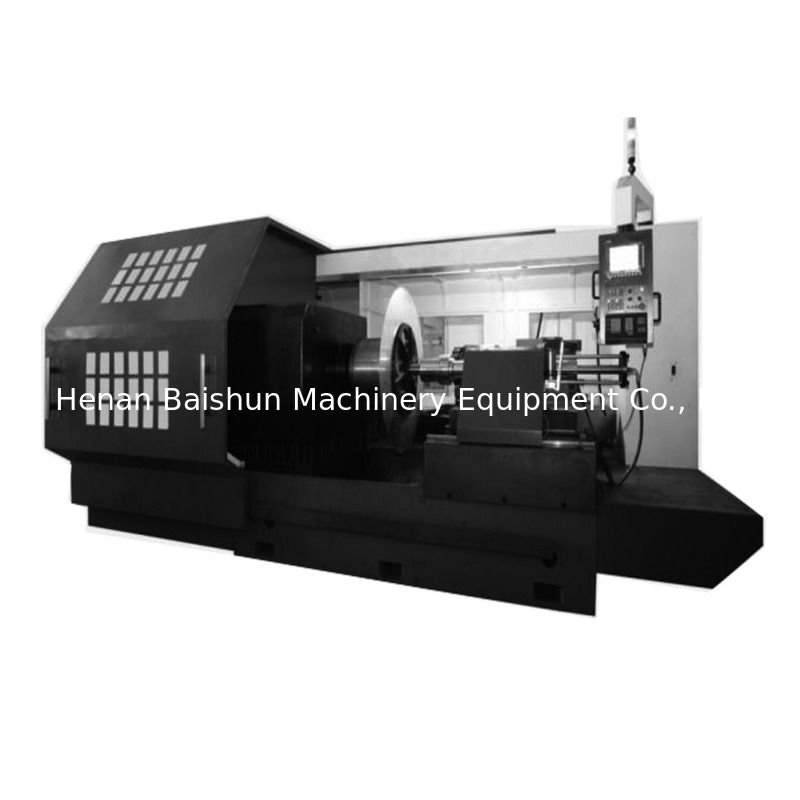

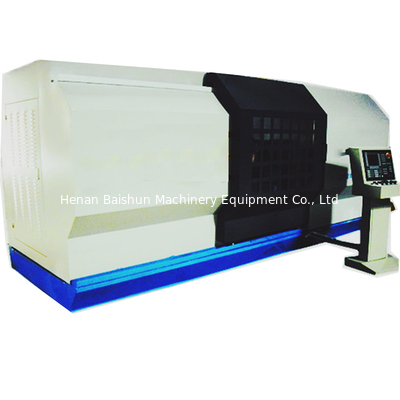

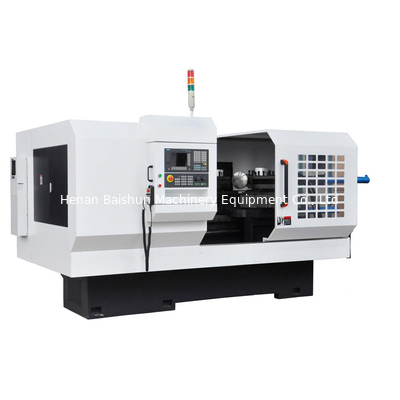

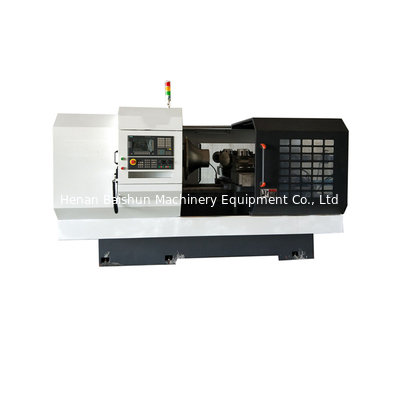

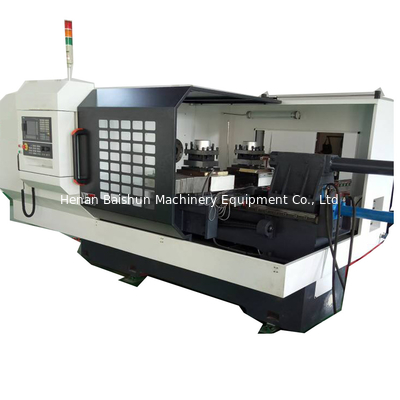

CNC metal stainless steel utensil kitchenware spinning lathe

CNC metal stainless steel utensil kitchenware spinning lathe

    • CNC metal stainless steel utensil kitchenware spinning lathe
    • CNC metal stainless steel utensil kitchenware spinning lathe
    • CNC metal stainless steel utensil kitchenware spinning lathe
    • CNC metal stainless steel utensil kitchenware spinning lathe
    • CNC metal stainless steel utensil kitchenware spinning lathe
    • CNC metal stainless steel utensil kitchenware spinning lathe
  • CNC metal stainless steel utensil kitchenware spinning lathe

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: BS-SP1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD1000-30000 / SET
    Packaging Details: Export standard package
    Delivery Time: 30 working days
    Supply Ability: 600 sets/month
    Contact Now
    Detailed Product Description
    Model Number: BS-SP1000 Spindle Bore: 110 Mm
    Spindle Motor Power: 21 Kw Amount Of Rollers: Sync 2+
    Max. Diameter Of Material: 1000 Mm Max. Swing Over Slide: 750 Mm
    Max. Length Of Work Piece: 700 Mm Width Of Bed: 850 Mm
    System: FANUC, SIEMENS, GSK, KND Weight: 8500 Kg
    Warranty: 12 Months

    CNC metal stainless steel utensil kitchenware spinning lathe

    Features:

    Blank Diameter: 5-1400mm

    Spin Material Thickness:

    Aluminum: 0.3-2.0 mm

    Copper: 0.5-2.0mm

    Iron and steel: 0.5-1.5 mm

    Stainless steel: 0.5-0.6mm

    Spin materials: steel, alloy and copper etc.

    Easy to operate with advanced digital control.

    Improve the production efficiency, machining accuracy and save the cost of human resources.

    Application: light, automobile, military, mechanic and other industries.



    Product Description:

    CNC Spinning and Turning Machine
    Items

    Technical Parameters



    Model BS-SP1000
    Amount of Rollers Sync 2+
    Max. Diameter of Material Φ1000 mm
    Max. Swing Over Slide Φ750 mm
    Max. Length of Work Piece 700 mm
    Thickness of Work Piece

    0.5-6 mm ( Aluminum, Copper)

    0.5-4 mm (Carbon Steel)

    0.5-3 mm (Stainless Steel)

    X Travel 510 mm
    Z Travel 780 mm
    Pushing Force for X Axis 50 kN
    Pushing Force for Z Axis 50 kN
    Pushing Force of Tailstock 100 kN
    Guide Rail Type Linear Guide Rail
    Width of Bed 850 mm
    Rapid Traverse X/Z 8/12 m/min
    Servo Power X/Z 25/30 N.m
    Pulse Equivalent X/Z 0.001 mm
    Positioning Accuracy 0.015 mm
    Repetitive Positioning Accuracy 0.008 mm
    Spindle Nose C11
    Taper of Spindle Bore 120(1:20)Metric
    Spindle Bore Φ110 mm
    Spindle Speed 1500 rpm
    Taper of Tailstock Quill MT5
    Travel of Tailstock 500 mm
    Travel of Tailstock Quill 250 mm
    Diameter of Tailstock Quill Φ85 mm
    Amount of Tools / Shank Size 4+4 mm²
    Spindle Motor Power 21kw

    Machining Accuracy

    It 6
    Surface Roughness Ra 1.25
    Overall Dimensions 3.6x2.5x2.5 m³
    Net Weight 8500 kg



    Application:

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    CNC metal stainless steel utensil kitchenware spinning lathe

    Our Service:

    1. 24 Hours after sales service by E-mail or Phone.

    2. 100% response rate.

    3. Engineers available to service overseas.

    4. OEM service is available

    5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
