Features:
Blank Diameter: 5-1400mm
Spin Material Thickness:
Aluminum: 0.3-2.0 mm
Copper: 0.5-2.0mm
Iron and steel: 0.5-1.5 mm
Stainless steel: 0.5-0.6mm
Spin materials: steel, alloy and copper etc.
Easy to operate with advanced digital control.
Improve the production efficiency, machining accuracy and save the cost of human resources.
Application: light, automobile, military, mechanic and other industries.
Product Description:
|

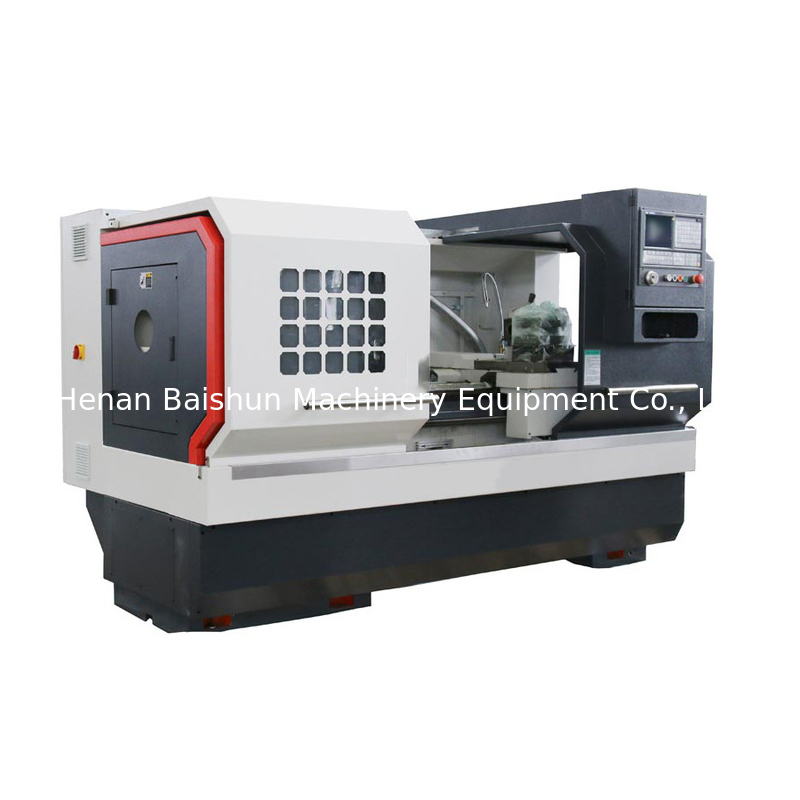

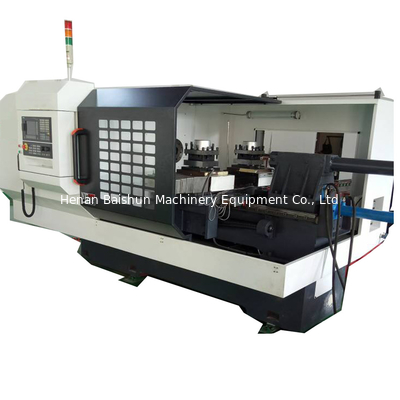

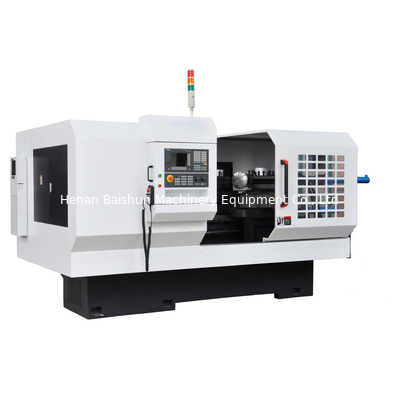

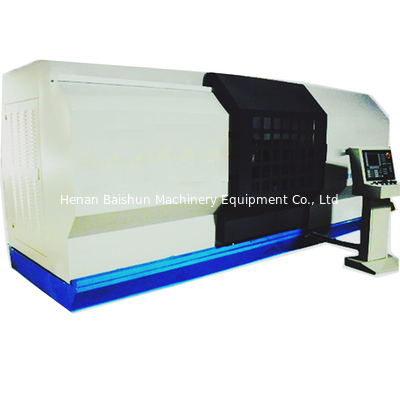

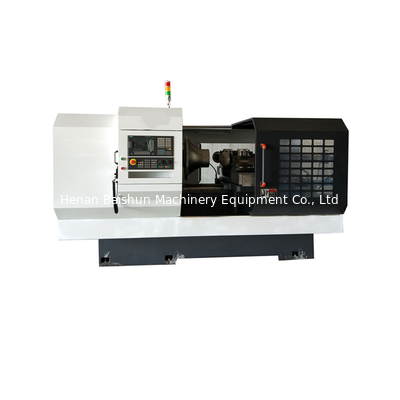

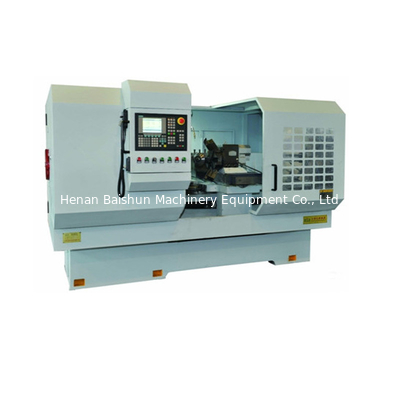

Hot sales cnc metal spinning lathe machine for stainless steel pot
|
| Model |
BS-SP1200 |
| Amount of Rollers |
Sync 2+ |
| Max. Diameter of Material |
Φ1200 mm |
| Max. Swing Over Slide |
Φ750 mm |
| Max. Length of Work Piece |
700 mm |
| Thickness of Work Piece |
0.5-6 mm (Aluminum, Copper)
0.5-4 mm (Carbon Steel)
0.5-2.5 mm (Stainless Steel)
|
| X Travel |
610 mm |
| Z Travel |
780 mm |
| Pushing Force for X Axis |
50 kN |
| Pushing Force for Z Axis |
50 kN |
| Pushing Force of Tailstock |
100 kN |
| Guide Rail Type |
Linear Guide Rail |
| Width of Bed |
850 mm |
| Rapid Traverse X/Z |
8/12 m/min |
| Servo Power X/Z |
25/30 N.m |
| Pulse Equivalent X/Z |
0.001 mm |
| Positioning Accuracy |
0.015 mm |
| Repetitive Positioning Accuracy |
0.008 mm |
| Spindle Nose |
C11 |
| Taper of Spindle Bore |
120(1:20)Metric |
| Spindle Bore |
Φ110 mm |
| Spindle Speed |
1500 rpm |
| Taper of Tailstock Quill |
MT5 |
| Travel of Tailstock |
500 mm |
| Travel of Tailstock Quill |
250 mm |
| Diameter of Tailstock Quill |
Φ85 mm |
| Amount of Tools / Shank Size |
4+4 mm² |
| Spindle Motor Power |
22kw |
|
Machining Accuracy
|
It 6 |
| Surface Roughness |
Ra 1.25 |
| Overall Dimensions |
3.6x2.5x2.5 m³ |
| Net Weight |
8500 kg |
Application:
Our Service:
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
