|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD22000-45000 / SET|
|Packaging Details:||Export standard package|
|Supply Ability:||600 sets/month|
|Model Number:||BS-1004||Color:||Customer's Request|
|Drilling Diameter:||2M||Drilling Depth:||100-6000MM|
|Bit Material:||Alloy Steel||Weight:||7000KGS|
Leading pole erection machine & hole digger machine for Kenya market
Machine is widely used to plant big plants and to erect electricity and solar poles, the electric power,communication, municipal, railway, highway, construction, petroleum, trees, such as the ideal foundation construction equipment
Tractor:Different YTO tractors(famous brand)
Drilling depth: 0-6m
Drilling diameter: 300mm-2000mm
Lifting capability of crane: 3~8tons
Length of pole: 3~18m
Standard drill pipe: 300mm-500mm (can customize 500~2000mm drill pipes)
Crane Lifting way: Hydraulic
Standard drilling time: 50s (diameter of 300mm-500mm)
Application: loess, clay, pebble sand, weathered granite, tundra etc.
Not suitable for: rocks, whole sand bed ,household garbage and so on.
Operator needed:1 person
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough , strong cross-country power. Fully hydraulic driving. Full-automatic put and upright the pole.

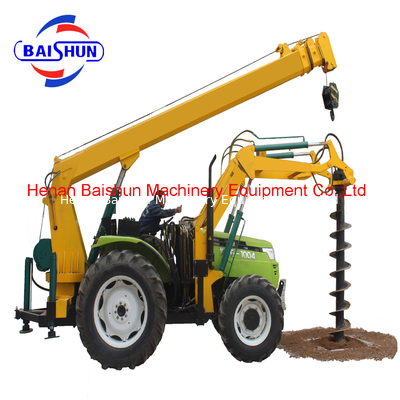

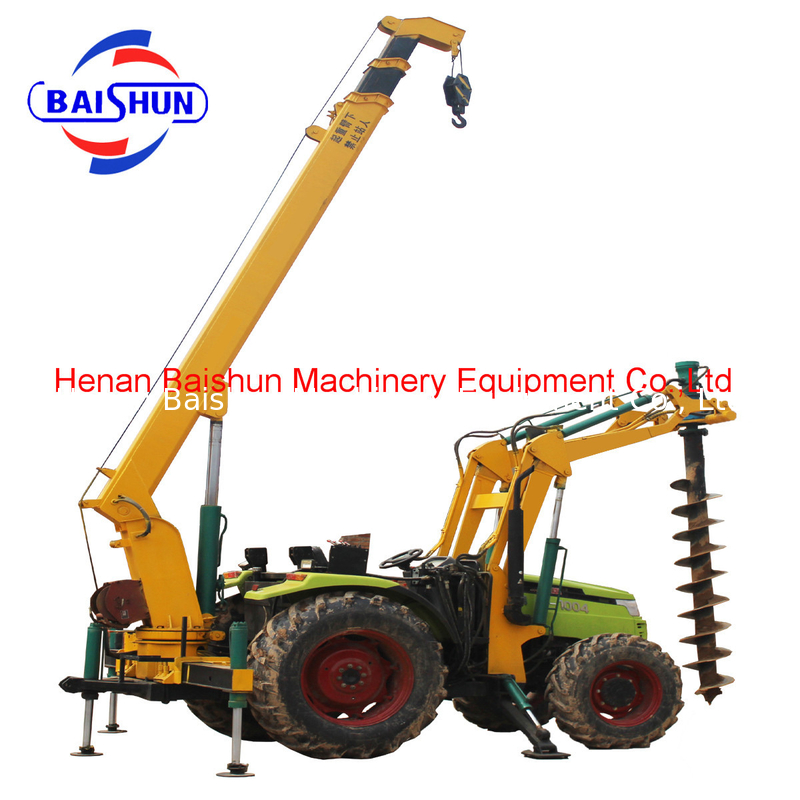

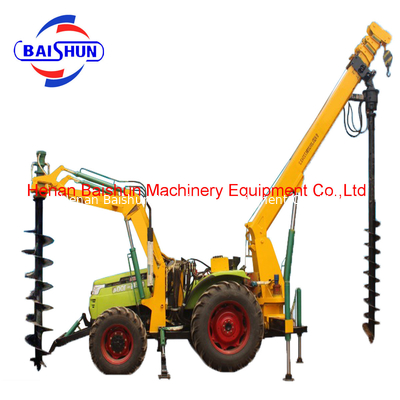

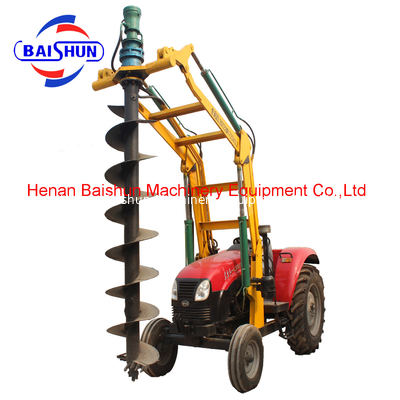

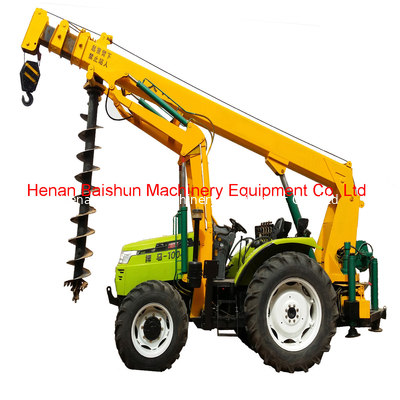

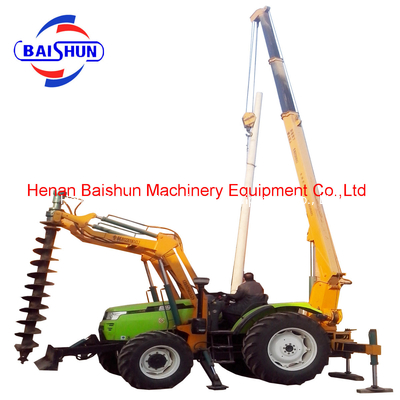

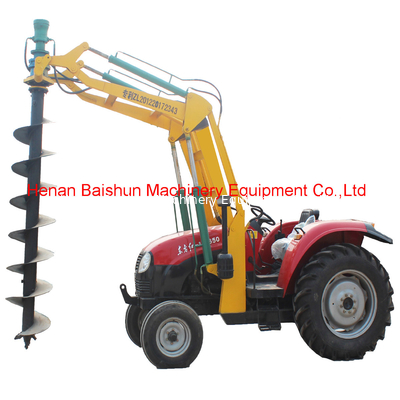

Some Photos for Your Reference
More detailed information is available, please feel free to contact us, we'll offer the best service for you.
