Product Description:
Oversea service pole lifting tractor pole erection machines for pole erect
1. Have four hydraulic stabilizer legs, 2 or 4 wheel-drive with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system,
3. more efficient and cos savings
4. strong enough cross-country YTO tractor power.
5. Full-automatic put and upright the pole
6. Heavy-duty transmission specifically designed for crane application.
7. Heavy duty winch motor for hoisting
8. Articulated chassis for turning radius
9. Built long chassis for more reliability
| Model |
BS-850 |
BS-1004 |
BS-1004H |
| Drive type |
4*2 |
4*4 |
4*4 |
| Power |
85HP |
100HP |
110HP |
| Steering system |
Hydraulic system |
Hydraulic system |
Hydraulic system |
| Bit material |
Alloy steel |
Alloy steel |
Alloy steel |
| Drill pipe reamer material |
Manganese steel |
Manganese steel |
Manganese steel |
| Hole diameter(mm) |
100-2000 |
100-2000 |
100-2000 |
| Hole depth(mm) |
100-6000 |
100-6000 |
100-6000 |
| Overall size(L*W*H) mm |
5520*2100*2884 |
6520*2170*2894 |
7520*2170*2994 |
| Weight(T) |
6.5 |
6.8 |
7.1 |
| Hoisting machine |
3T, 5T, 8T |
5T, 8T, 10T |
8T, 10T, 12T |
| Dig a pit speed(/sec) |
25-60 |
25-60 |
25-60 |
Product Features
(A) 4 driver wheeled hydraulic drill machine
(B) professional design make the arm of digger more stable
(C) widely use in construction of power facilities.
(D) high efficiency and Save manpower.
(E) main body is YTO tractor, famous brand can search YTO GROUP.
(G) One person operate and one help to fix the wire rod.
(H) Save manpower and with high efficiency.
(I)easy working on the loess layer, clay layer, containing pebbles gravel soil, weathered rock and soil, frozen soil, building garbage, backfill sand, garbage layer.

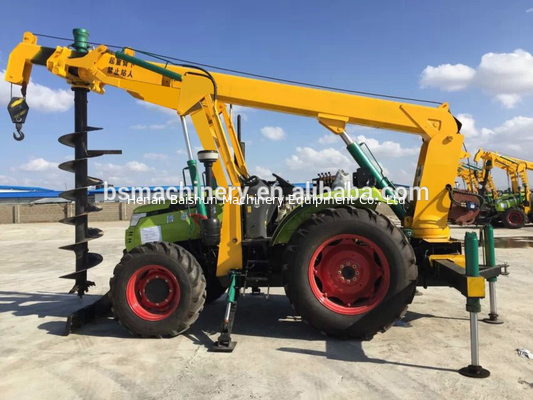

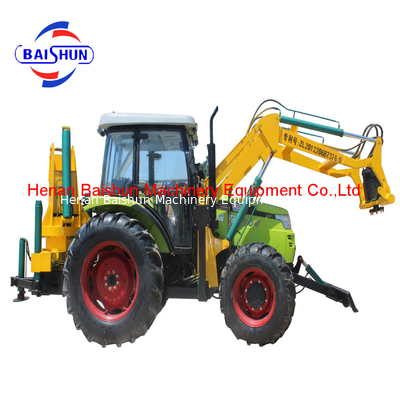

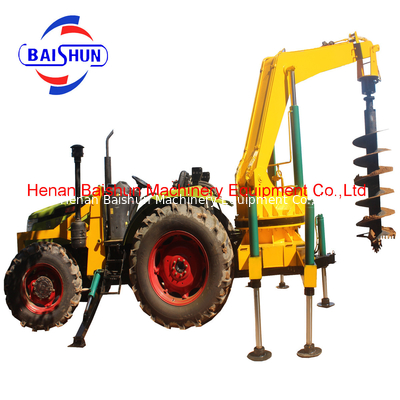

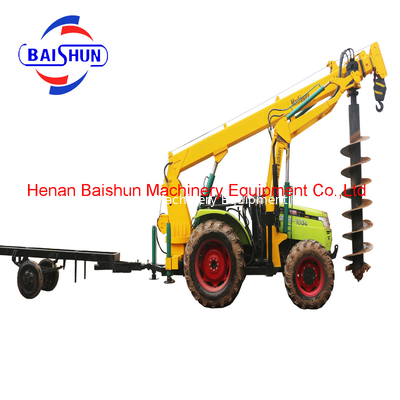

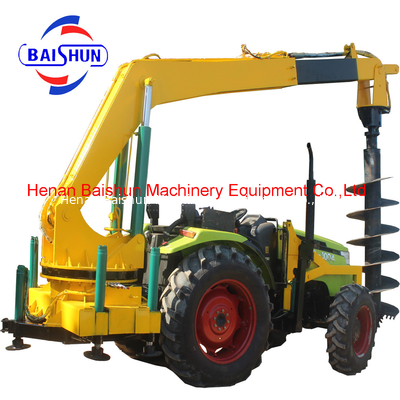

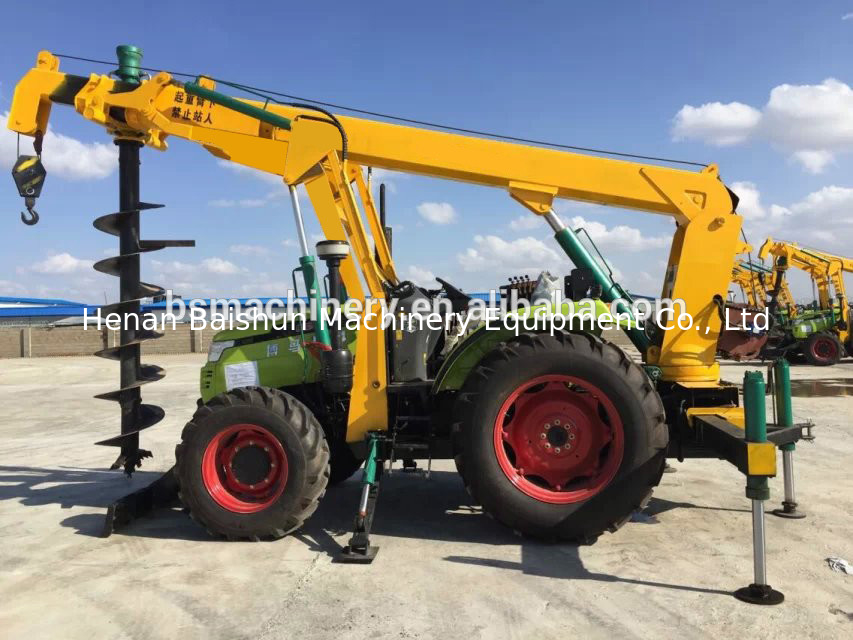

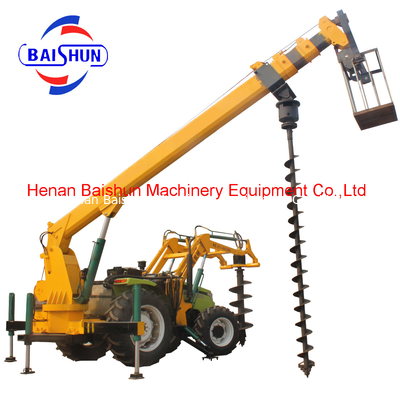

Product Photos
Product Application:
85HP YTO Tractor Auger Pile Rig Machine Pole Erection Machine, which is the ideal choice for individuals and units of construction equipment, cement pole borehole of power construction, telegraphic pole, Tree hole digging and tree planting, pile foundation drilling, pile foundation of building construction and so on.
FAQ
1: Where is your factory located? How can I visit there?
A: Our factory is in Zhengzhou City ,very close to Xinzheng Airport, warmly welcome you to visit our factory, we can pick you up from airport.
2: What’s your main product range?
A. Pole erection machine with tractor crane, post hole digger, etc
3: Can you do OEM?
A: Yes, we can do OEM.
4: We want to be your agent in our local area, how to apply for this?
A: Please send email to us about your ideas, win-win.
5: How about your trade terms and payment terms?
A:Our trade term is EXW,FOB,CFR and CIF.
We accept T/T, Western Union, Paypal and L/C payments terms.
6: What’s your delivery port and delivery time?
A: Qingdao or Shanghai, China;
Delivery time is 15 working days after 30% deposit received.
Our Services
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
