| Model |
BS-850 |
BS-1004 |
BS-1004H |
| Drive type |
4*2 |
4*4 |
4*4 |
| Power |
85HP |
100HP |
110HP |
| Steering system |
Hydraulic system |
Hydraulic system |
Hydraulic system |
| Bit material |
Alloy steel |
Alloy steel |
Alloy steel |
| Drill pipe reamer material |
Manganese steel |
Manganese steel |
Manganese steel |
| Hole diameter(mm) |
100-2000 |
100-2000 |
100-2000 |
| Hole depth(mm) |
100-6000 |
100-6000 |
100-6000 |
| Overall size(L*W*H) mm |
5520*2100*2884 |
6520*2170*2894 |
7520*2170*2994 |
| Weight(T) |
6.5 |
6.8 |
7.1 |
| Hoisting machine |
3T, 5T, 8T |
5T, 8T, 10T |
8T, 10T, 12T |
| Dig a pit speed(/sec) |
25-60 |
25-60 |
25-60 |
Product Application:
Superior quality micropiles drilling rig machine, which is the ideal choice for individuals and units of construction equipment, cement pole borehole of power construction, telegraphic pole, Tree hole digging and tree planting, pile foundation drilling, pile foundation of building construction and so on.

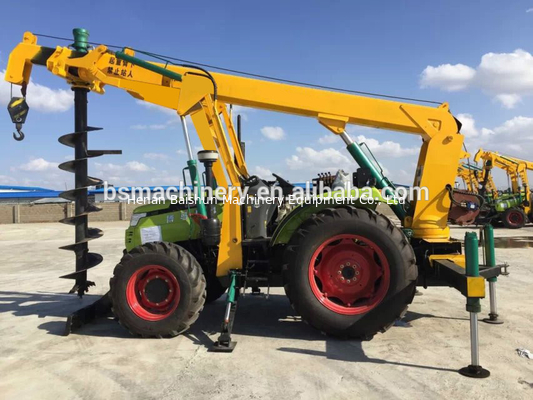

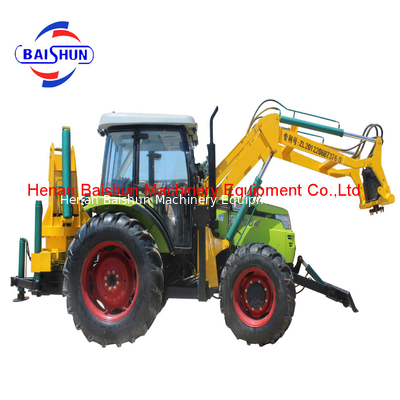

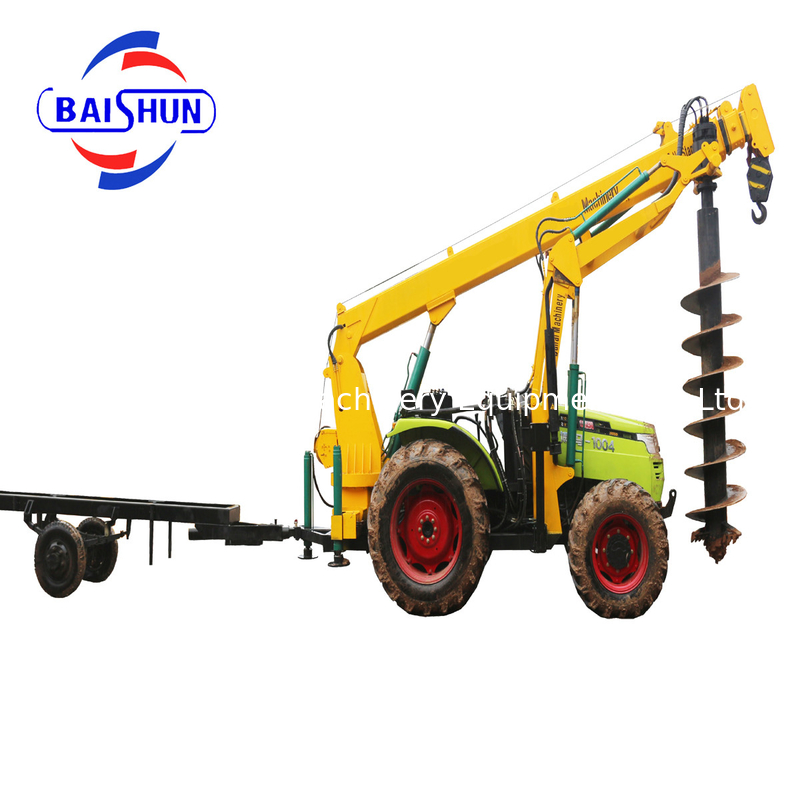

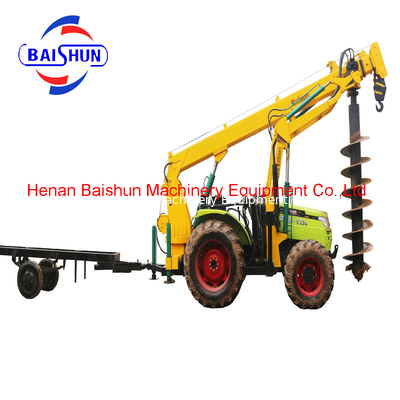

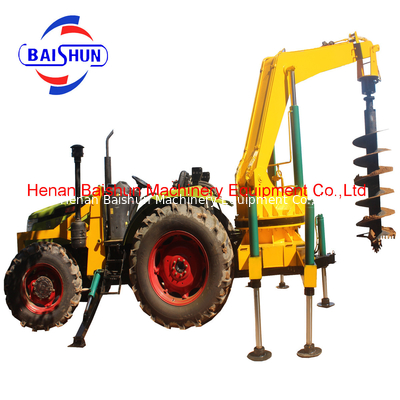

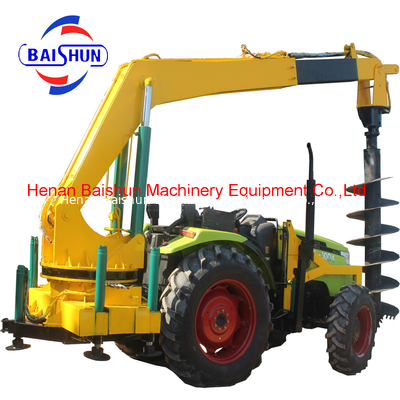

Detailed Pictures:
Delivery and Package:
Our Service:
1. 24 Hours after sales service by E-mail or Phone.
2. 100% response rate.
3. Engineers available to service overseas.
4. OEM service is available
5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
