|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD22000-45000 / SET|
|Packaging Details:||Export standard package|
|Model Number:||BS-1004||Color:||Customer's Request|
|Drilling Diameter:||2M||Drilling Depth:||100-6000MM|
|Bit Material:||Alloy Steel||Weight:||7000KGS|

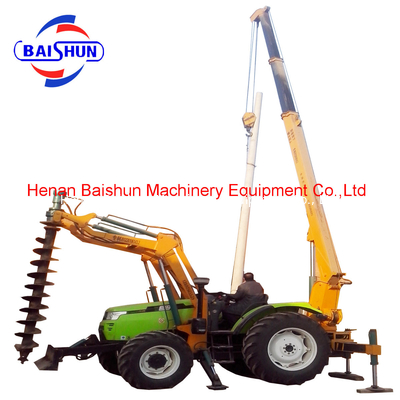

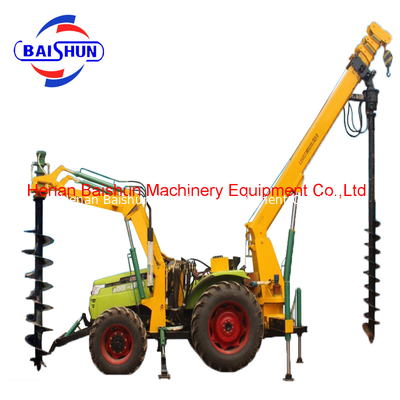

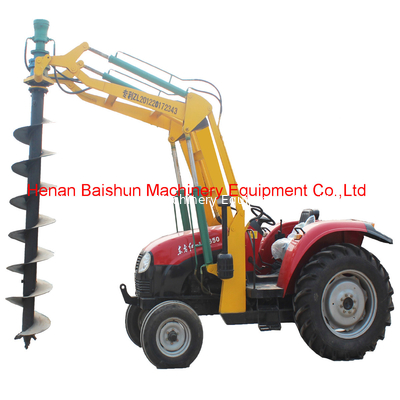

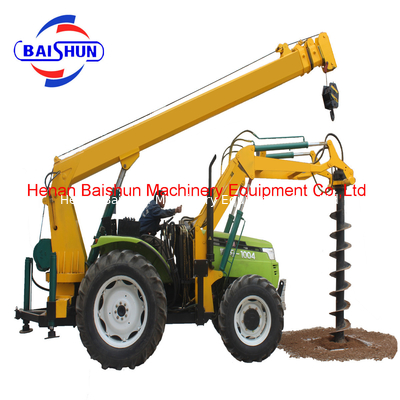

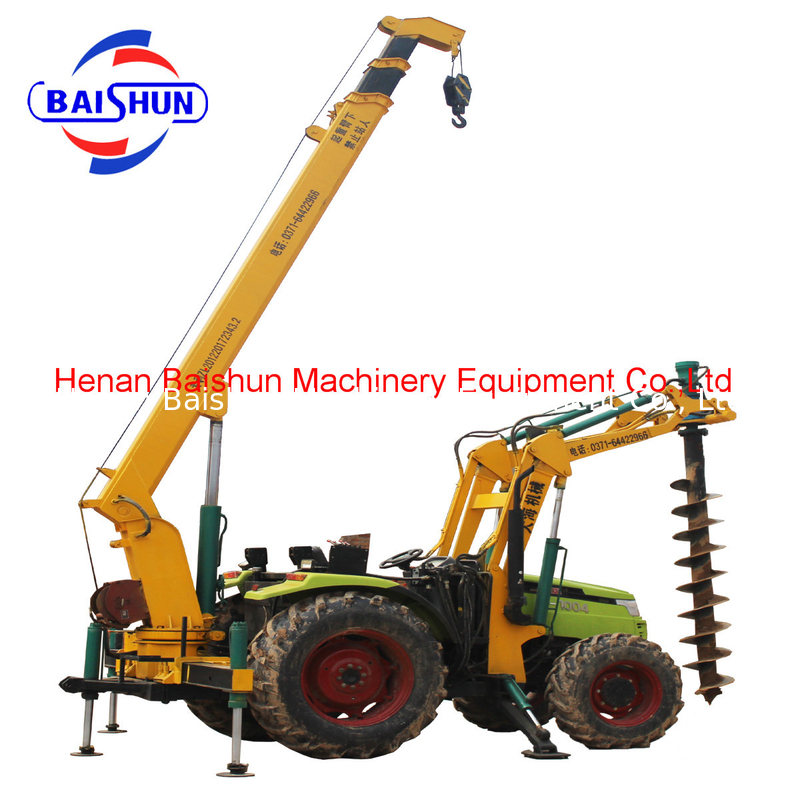

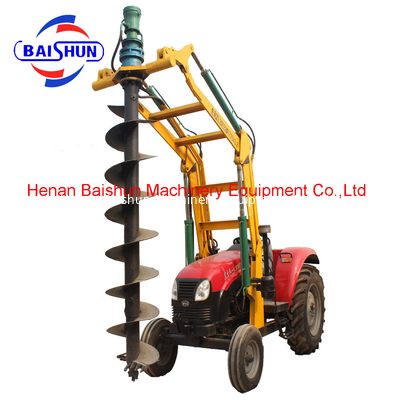

Electric Pole Installation Machine With Solar Pit Digger Spiral Earth Auger Hole Drilling Piling Machine
Baishun Earth auger is a kind of post hole attachments which is mainly used in skid steer loaders, mini loaders, mini excavators, backhoe loaders, telescopic handler, wheel Loader and other machinery.
|Model No.||BS-1004||Description||Hole digger|
|(1) power: 1004 type four wheel tractor(Four-wheel drive)|
|(2) The length of drill: 1-6meters(customer booked)|
|(3) Bit diameter: 300-1200mm(customer booked)|
|(4) Spiral drill hydraulic drive form: hydraulic hoist|
|(5) Standard bar pit time: 40 seconds (500mm in diameter x depth 3M)|
|(6) Function:digging ,lifting and bulldozing.|
|(7) Net/Gross weight: 6.68t/6.8t|
|(8) Package dimension: full 20 feet container|
|(9) Color: green and yellow|
|(10) Working principle: screw be pushed by power from hydraulic.
It usually applicated in exploration and research,groundsource heat pumps,Fence,landscaping,tree planting,Well boring,foundation piles,screw pile installation,pole and mast installations,road signage,
sound barriers and so on.
Wire rod digging machine bored piling equipment have 7 founction for choose :digging ,ditching, etc.suitable for building fast into the hole in foundation engineering construction machinery.Its construction of high efficiency, is the electric power, communication, municipal, railway, highway, construction, petroleum, trees,It uses the drive 2 0r drive 4 tractor power as its powersource and has a good filed work characteristic. The frontloadingstructure, fully hydraulic power, high strength alloy bit, torsionproof andtensile strength spiral drill pipe, largetonnage telescopic crane, all thesedevices make sure the operation is safety and flexible.One person canoperate the machine easily and conveniently, which greatly improve theworking efficiency. Drill, drill stem and supported arm are assembled in aspecial way, which makes it more convenient to disassemble. It makes thelongdistance transportation and shortdistance movement easier.
Forged hoods ears: Deal with the heavy strain of daily use.
Eaton Motor: Developing the most reliable attachments .
ERICYLIC gearbox: Unique planetary gearbox.Multiplied output torque.
Extreme efficiency,widely used in The construction of roads, road bridges
The machine adopts full hydraulic pressure drive forms, improve the workefficiency.The superposed structure to make sure that one worker can operate the machine well
1. multifuncational automatic
2. tractor drive
3.full hydraulic pressure
4.all-in-one machine of pay-off,poling&earth auger.
