Pile drilling machine yto tractor small pile driving machine pole erection machine

Pile drilling machine yto tractor small pile driving machine pole erection machine

    • Pile drilling machine yto tractor small pile driving machine pole erection machine
    • Pile drilling machine yto tractor small pile driving machine pole erection machine
    • Pile drilling machine yto tractor small pile driving machine pole erection machine
    • Pile drilling machine yto tractor small pile driving machine pole erection machine
    • Pile drilling machine yto tractor small pile driving machine pole erection machine
    • Pile drilling machine yto tractor small pile driving machine pole erection machine
  • Pile drilling machine yto tractor small pile driving machine pole erection machine

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: BS1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD22000-45000 / SET
    Packaging Details: Export standard package
    Supply Ability: 600 sets/month
    Contact Now
    Detailed Product Description
    Model Number: BS1000 Color: Customer's Request
    Drilling Diameter: 2M Drilling Depth: 100-6000MM
    Power: 100HP OEM: Yes
    Bit Material: Alloy Steel Weight: 7000KGS
    Warranty: 12 Months

    Product Description:



    Pile drilling machine yto tractor small pile driving machine



    This kind of pole erection machine with post hole digger, which is very suitable in digging earth & erection ofelectrical poles. This compact solution can be quite useful for pole erection as it helps in reduction of labourand increases the number of poles erected per day thereby significantly reducing the project time drastically. More safeties are provided in this machine compare to other local pole erector machines.





    Benefits of Pole Erection Machine

    (1) Huge cost saving , very high speed of work and reduce the burden of labor management

    (2) Eliminate the prevailing labor problem completely thus leads to project on time execution.

    (3) High production capacity with proper planning and execution per shift of 8 working hours,

    (4) which can complete the pole installation of 25 to 30 poles per shift by two labors only.

    (5) Pole erection working can be done by two labors only against the current manual practice of 12 to 14 labors.

    (6) Takes a little time to make a pit against the time taken by manual labor is 5 to 6 hours.

    (7) Cost Saving for contractor.



    Technical Parameters:

    Model BS-1004H
    Drive type 4*4
    Power 110HP
    Steering system Hydraulic system
    Bit material Alloy steel
    Drill pipe reamer material Manganese steel
    Hole diameter(mm) 100-2000
    Hole depth(mm) 100-6000
    Overall size(L*W*H) mm 7520*2170*2994
    Weight(T) 7.1
    Hoisting machine 8T, 10T, 12T
    Dig a pit speed(/sec)

    25-60





    Product Application:

    Superior quality micropiles drilling rig machine, which is the ideal choice for individuals and units of construction equipment, cement pole borehole of power construction, telegraphic pole, Tree hole digging and tree planting, pile foundation drilling, pile foundation of building construction and so on.

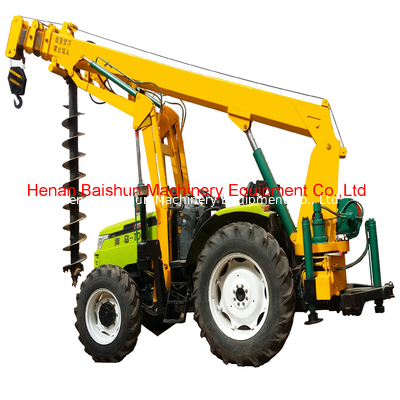

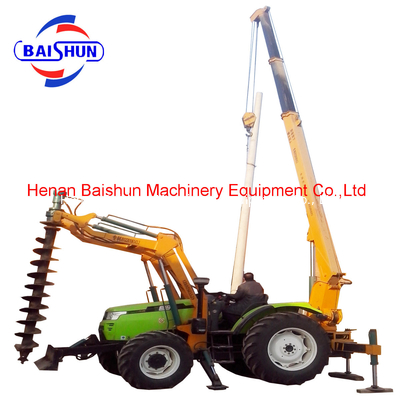

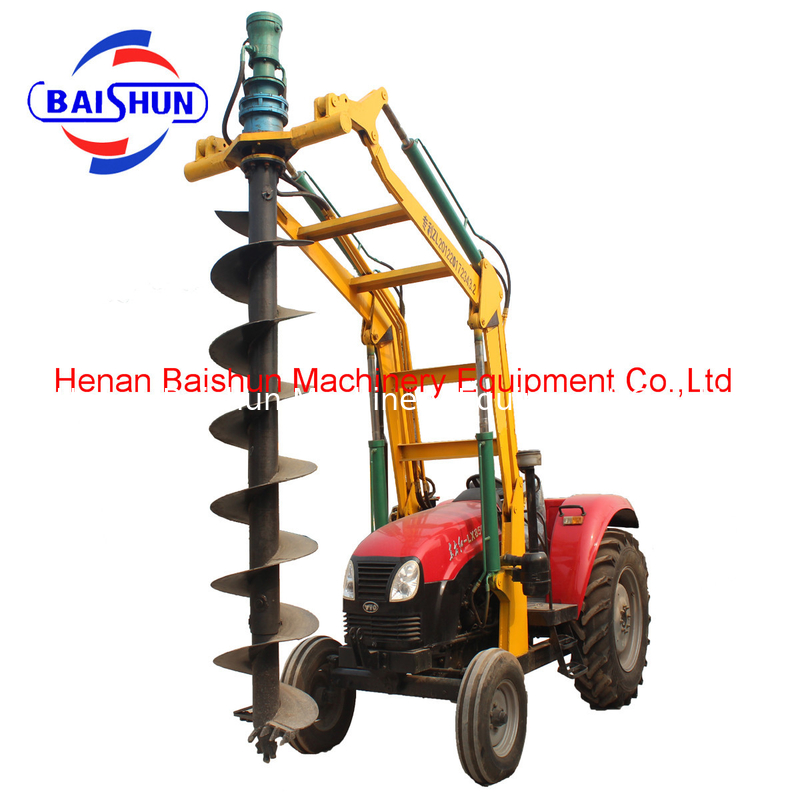

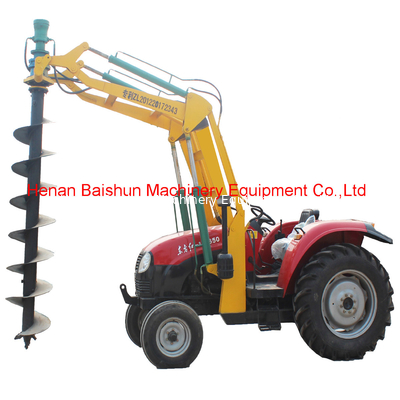

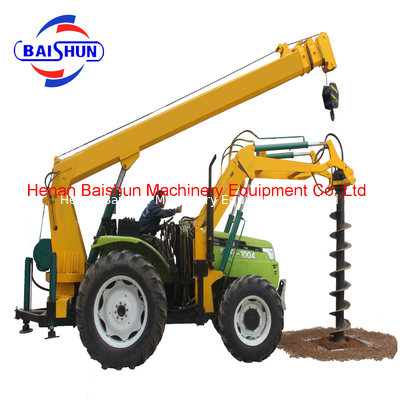

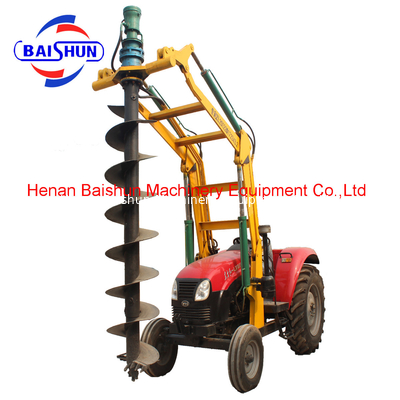

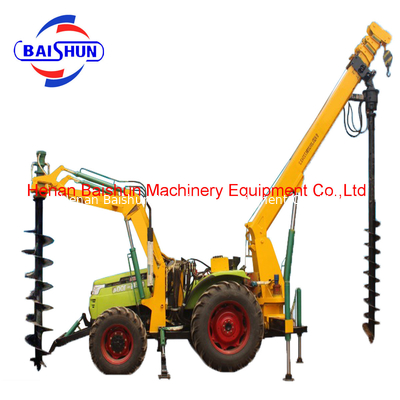

    Detailed Pictures: Pile drilling machine yto tractor small pile driving machine pole erection machine

    Pile drilling machine yto tractor small pile driving machine pole erection machinePile drilling machine yto tractor small pile driving machine pole erection machinePile drilling machine yto tractor small pile driving machine pole erection machine





    Delivery and Package:

    Pile drilling machine yto tractor small pile driving machine pole erection machinePile drilling machine yto tractor small pile driving machine pole erection machine

    Pile drilling machine yto tractor small pile driving machine pole erection machine



    FAQ:



    Q1:Could you custom products?
    A: We can custom products according to your needs.



    Q2: We want to buy your products, how can we pay?
    A: TT, Western Union, Paypal, RMB, L/C is ok for us.



    Q3: How can you guarantee the product quality?
    A: Warranty time: 12 months, any quality problem, we will responsible for it.



    Q4: If we don’t find what we are looking for on your website, what should we do?
    A: You can contact us by E-mail, Wechat/Whatsapp/Skype, we will check and respond you in time.



    Q5: Will you check the product before delivery?
    A: Yes, we are responsible for customer, the goods will be strictly inspection by QC team.



    Q6: What is the lead time?
    A: Within 1 week, some products is in stock, the lead time is according to the product and order quantity.
