    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: CK61125Q

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-35000
    Packaging Details: Export standard package
    Contact Now
    Detailed Product Description
    Swing Over Bed: 1250mm Swing Over Carriage: 850mm
    Main Motor Power: 11/15kw CNC Control System: GSK980TDc/Siemens828D/Fanuc 0i Mate-Td

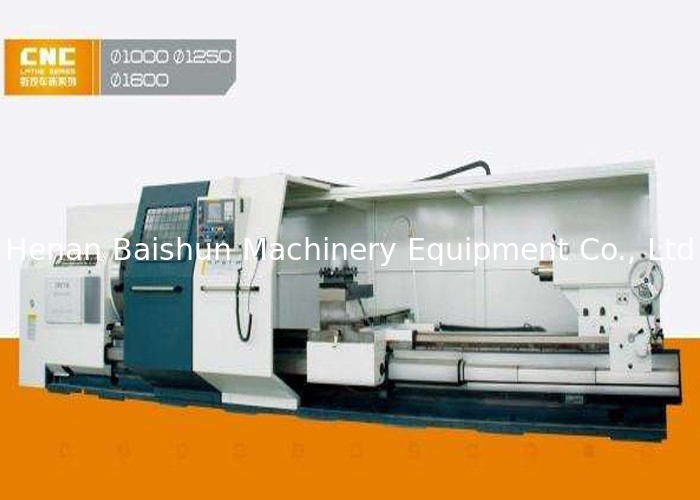

    CK61125Q series cnc horizontal lathe machine (Guide rail width=600mm, 2.5 tons load)



    Goods Description



    CK61125Q CNC horizontal lathe machine tool is universal standard automatic machining equipment for metal processing,capable of semi finish machining and finish machining of machinery components and parts,with the main characters such as reliable structure,easy operating and economica for using

    This series lathe machine mainly used for turning the internal and external cylindrical surface,

    conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc



    Main Features:

    Integral machine bed adopts high strength iron to realize high rigidity and precision;

    Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

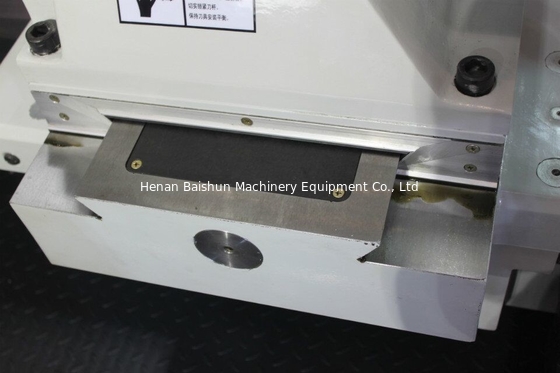

    Carrigge and guide way contact surface pasted with Turcite B to maintain long-term accuracy.

    CK61125Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)



    CK6180/Ck6280 CNC horizontal lathe machine

    CNC horizontal lathe series including CK6163, CK6180, CK61100Q and CK61125Q is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.

    TECHNICAL PARAMETERS OF CK61125Q CNC LATHE

    MODEL Data
    CK6163 CK6180 CK61100Q CK61125Q
    Max. swing over bed 630mm 800mm 1000mm 1250mm
    Max. swing over carriage 350mm 480mm 610mm 850mm
    Center distance 1500/2000/3000/4000mm
    Spindle hole Ø105mm
    Max.distance of moving tool-post
    Longitude 1500 2000 3000 4000mm
    Transverse 420mm 520mm
    Spindle speed (number) 6-20,18-70,70-245,225-750
    Main motor power 11 or 15KW
    Speed of high-speed movement
    Longitude 6m/min
    Transverse 4m/min
    Feed resoving factor
    Longitude 0.01mm
    Transverse 0.005mm
    Tool numbers on tool-post 4.6.8
    Positioning capacity
    Longitude 0.04/1000mm
    Transverse 0.03mm
    Repeatablity
    Longitude 0.016/1000mm
    Transverse 0.012mm
    Repeatablity accuracy of tool-post 0.005mm
    NET WEIGHT
    Center distance:1500mm 4300kg 4500kg 4700kg 4900kg
    2000mm 4800kg 5000kg 5200kg 5400kg
    FLOOR SPACE(LXWXH)
    Center distance:1500mm 3460x1830x1730 3460x1910x1960





    CK61125Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)

    CK61125Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)
