Place of Origin: | China |
Brand Name: | BAISHUN |
Certification: | ISO9001:2008; CE. |
Model Number: | CK6180 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 12000-25000 |
Packaging Details: | Export standard package |
Swing Over Bed: | 630mm | Swing Over Carriage: | 350mm |
---|---|---|---|
Main Motor Power: | 11kw | CNC Control System: | Siemens/Fanuc |
Goods Description

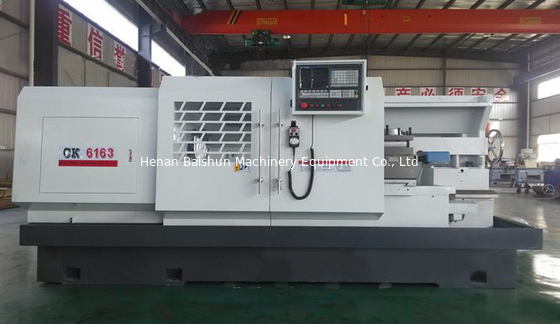

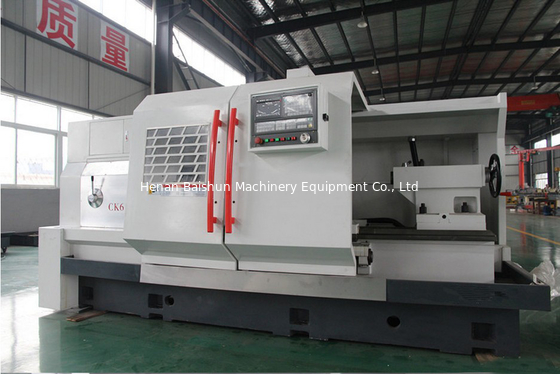

CNC horizontal lathe series including CK6163, CK6180, CK61100 and CK61125 is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.

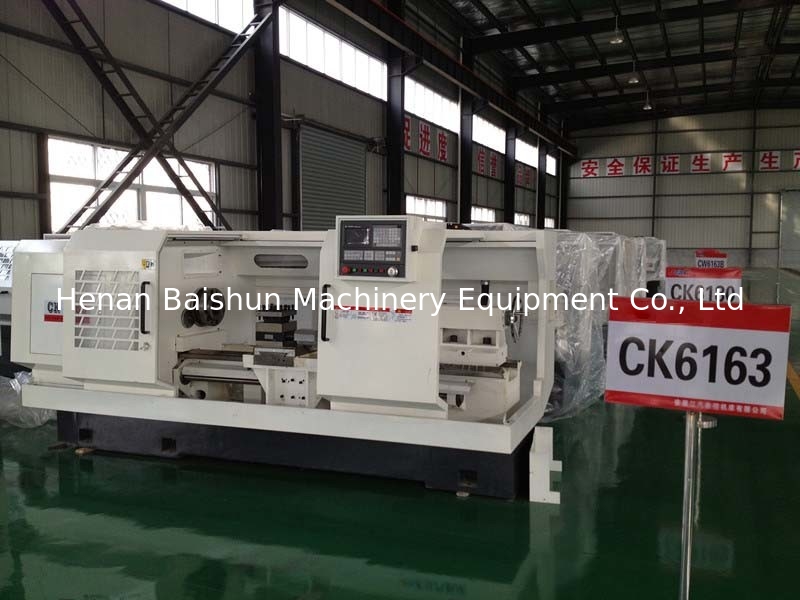

TECHNICAL PARAMETERS OF CK6163 CNC LATHE
MODEL | Data | |||
CK6163 | CK6180 | CK61100 | CK61125 | |
Max. swing over bed | 630mm | 800mm | 1000mm | 1250mm |
Max. swing over carriage | 350mm | 480mm | 610mm | 850mm |
Center distance | 1500/2000/3000/4000mm | |||
Spindle hole | Ø105mm | |||
Max.distance of moving tool-post | ||||
Longitude | 1500 2000 3000 4000mm | |||
Transverse | 420mm | 520mm | ||
Spindle speed (number) | 6-20,18-70,70-245,225-750 | |||
Main motor power | 11 or 15KW | |||
Speed of high-speed movement | ||||
Longitude | 6m/min | |||
Transverse | 4m/min | |||
Feed resoving factor | ||||
Longitude | 0.01mm | |||
Transverse | 0.005mm | |||
Tool numbers on tool-post | 4.6.8 | |||
Positioning capacity | ||||
Longitude | 0.04/1000mm | |||
Transverse | 0.03mm | |||
Repeatablity | ||||
Longitude | 0.016/1000mm | |||
Transverse | 0.012mm | |||
Repeatablity accuracy of tool-post | 0.005mm | |||
NET WEIGHT | ||||
Center distance:1500mm | 4300kg | 4500kg | 4700kg | 4900kg |
2000mm | 4800kg | 5000kg | 5200kg | 5400kg |
FLOOR SPACE(LXWXH) | ||||
Center distance:1500mm | 3460x1830x1730 | 3460x1910x1960 |
