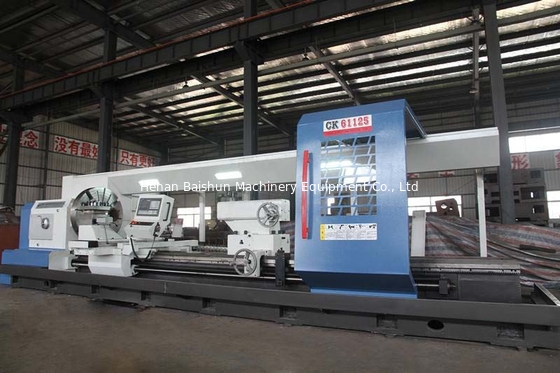

CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
  • CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: CK6180

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-35000
    Packaging Details: Export standard package
    Contact Now
    Detailed Product Description
    Swing Over Bed: 1250mm Swing Over Carriage: 850mm
    Main Motor Power: 22kw CNC Control System: GSK980TDc/Siemens828D/Fanuc 0i Mate-Td

    Goods Description

    CK61125 CNC Big Spindle Bore Horizontal Lathe Machine





    CK61125 CNC big spindle bore horizontal lathe machine tool is universal standard automatic machining equipment for metal processing,capable of semi finish machining and finish machining of machinery components and parts,with the main characters such as reliable structure,easy operating and economica for using

    This series lathe machine mainly used for turning the internal and external cylindrical surface,

    conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc



    Main Features:

    Integral machine bed adopts high strength iron to realize high rigidity and precision;

    Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

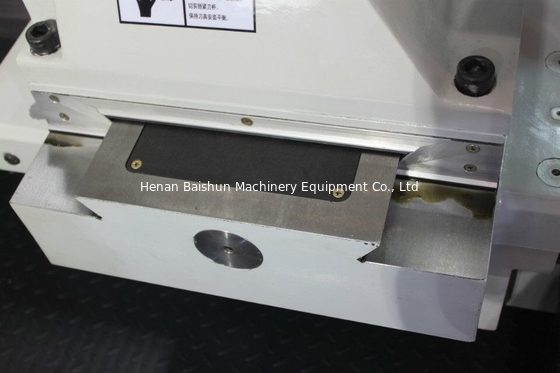

    Carrigge and guide way contact surface pasted with Turcite B to maintain long-term accuracy.

    CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

    CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)



    CK61125B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)



    TECHNICAL PARAMETERS OF CK6163 CNC LATHE

    Main features

    1.After the lead rail of the machine by super audio quenching and finish grinding and plastic coating ,it is of good rigidty and stability

    2.Three gears controlled by a handle,stepless speed regulation,with low noise and high standard accuracy,is an environmental-protective machine

    3.The spindle is high-rotate speed and sophisticated bearing with smooth surface,the extra size diameter of the spindle bore Φ160

    4. It is made from the whole cast-iron,which is heavy enough and of good rigidly and stability

    5.Three gears controlled by a handle,stepless speed regulation,with lower noise and high standard machining accuracy

    6.The spindle is the high-rotate speed and sophisticated bearing ,with smooth surface ,high precision ,high effetive



    2.Specification details



    Item Description CK61125B (6tons load)
    Main specifications Max.swing over the bed dia. (mm) Φ1250
    Max. swing over carriage(mm) Φ850
    Max.workpiece length(mm) 3000
    Transmission system Main transmission mode Independent spindle;
    frequency conversion
    Range of spindle speed(r/min) 4-450(three gears)
    Type of the spindle head A2-15
    Taper of Spindle hole 150/1:20
    Spindle bore(mm) Φ160

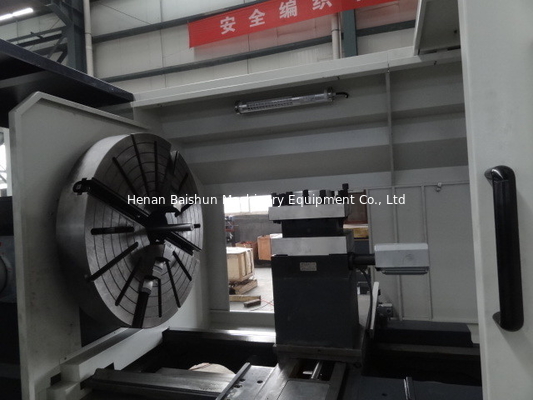

    Chuck dia. (mm) Φ1000
    Main motor power(kw) 22
    Feed system
    Positioning accuracy Xaxis:0.032,Zaxis:0.05
    Repeat positioning accuracy Xaxis:0.016,Zaxis:0.012
    Workpiece accuracy IT6-IT7
    Workpiece surface roughness Ra1.6-Ra3.2

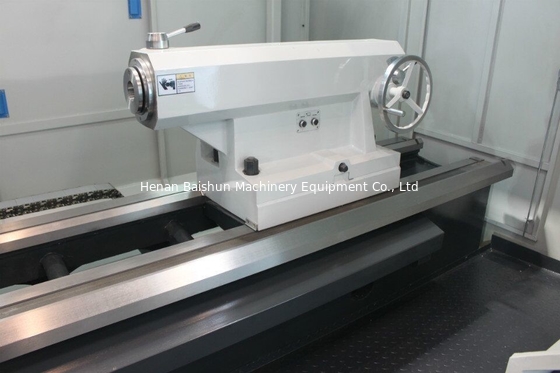

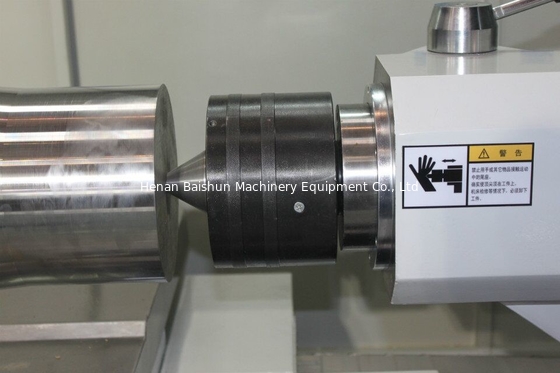

    Tailstock Dia. of tailstock quill(mm) 100
    Tailstock quill stroke(mm) 250
    Taper of tailstock quill 80/1:20

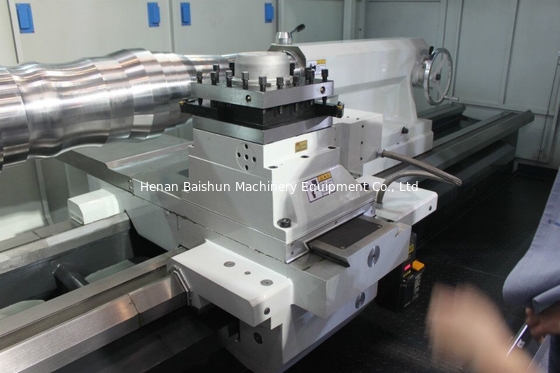

    Tool post Standard accessories 4 station electric tool
    Optional accessories Horizontal 6,8-station electric turret
    or gang-type tool carrier
    Repeat positioning accuracy(mm) 0.012

    Size&weight Dimension(L*W*H)(mm) 6340x2360x2400mm
    Net weight(kg) 12000
