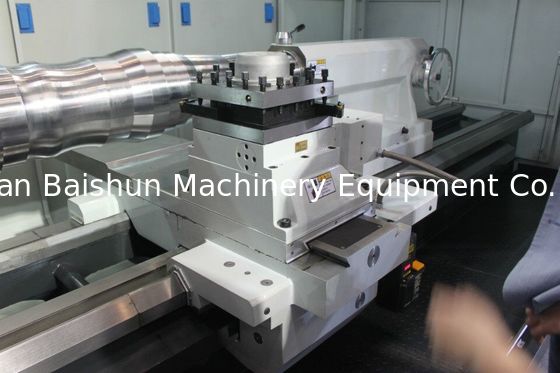

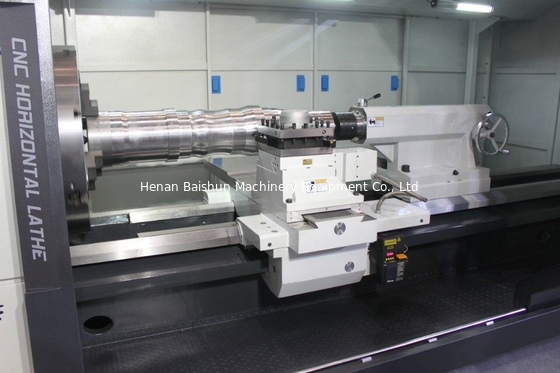

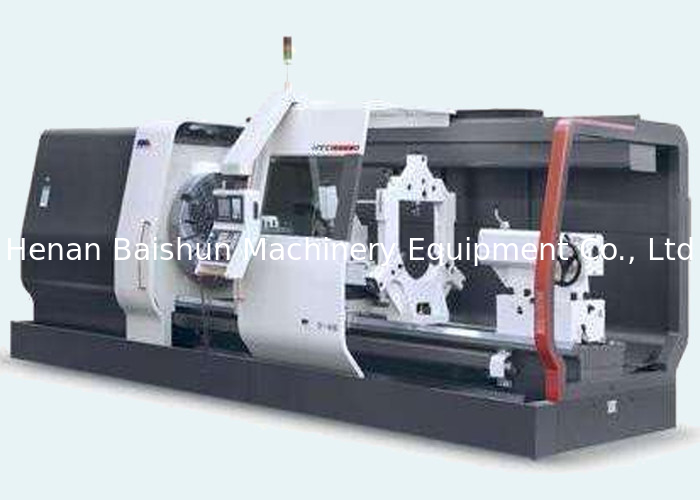

CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
    • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)
  • CK61100B CNC horizontal lathe machine (Guide rail width=755mm, 6tons load)

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008; CE.
    Model Number: CK61100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-35000
    Packaging Details: Export standard package
    Contact Now
    Detailed Product Description
    Swing Over Bed: 1000mm Swing Over Carriage: 610mm
    Main Motor Power: 22kw CNC Control System: GSK980TDc/Siemens828D/Fanuc 0i Mate-Td

    CK61100 series heavy duty cnc horizontal lathe machine



    Brief Introduction
    • Servo main motor 22kW,
    • X/Z axis servo motor,
    • automatic 4 gears, infinitely variable speeds within the gear,
    • Spindle Speed: 3.15~ 315rpm,

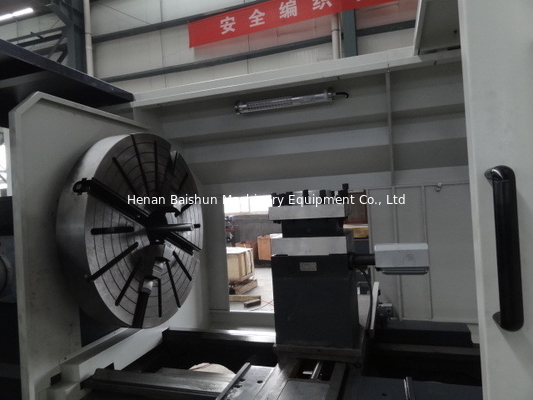

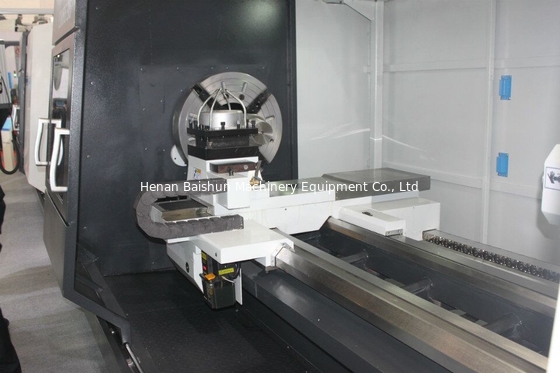

    • 4-position turret,
    • Spindle bore: φ130mm,
    • Bed width:755mm,

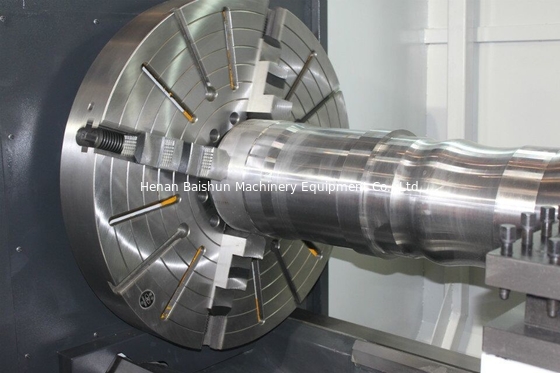

    • φ1000mm manual 4-jaw chuck, manual tailstock ;



    CK61100 CNC horizontal lathe machine tool is universal standard automatic machining equipment for metal processing,capable of semi finish machining and finish machining of machinery components and parts,with the main characters such as reliable structure,easy operating and economica for using

    This series lathe machine mainly used for turning the internal and external cylindrical surface,

    conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc



    Main Features:

    Integral machine bed adopts high strength iron to realize high rigidity and precision;

    Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

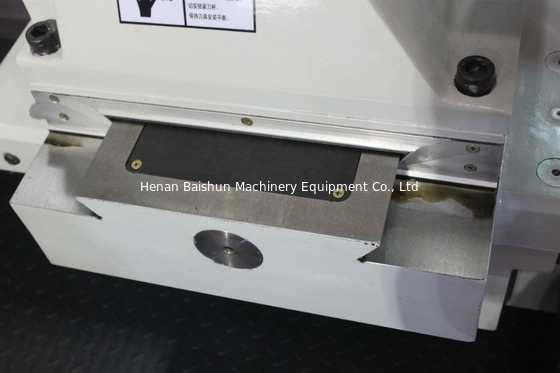

    Carrigge and guide way contact surface pasted with Turcite B to maintain long-term accuracy.



    Main Technical Data
    Specifications Unit Parameter
    Swing over bed mm φ1000
    Swing over carriage mm φ650
    Between distance mm 2000/3000/4000/6000/8000/10000
    Dia. Of chuck mm φ1000
    Cutting length mm 1800
    Width of bed mm 755

    Support capacity between centers

    (with steady rest)

    kg 6000

    Support capacity between centers

    (between 2 core)

    kg 2000
    Spindle hole through mm φ130
    Spindle nose   A2-15
    Spindle taper mm Metric No. 140
    Spindle speed rpm 3.15~ 315 with 4 steps
    Ball screws in X-Axis   Star brand of Germany
    Rack in Z-Axis   By Germany
    Gear box in Z-Axis   By France
    Turret made by China   4-positions, vertical type
    Size of tool holder mm 32×32
    Travel of X-Axis mm 610
    Travel of Z-Axis mm 1800
    Feeding speed of X-Axis & Z-Axis mm/min.

    X: 0.1 ~ 2000

    Z: 0.1 ~ 2000

    Rapid traverse of X-Axis & Z-Axis mm/min. X: 4000 Z: 6000
    Positioning accuracy mm X: 0.030 Z: 0.050
    Vertical 4-position Tool post changing time s 4.0

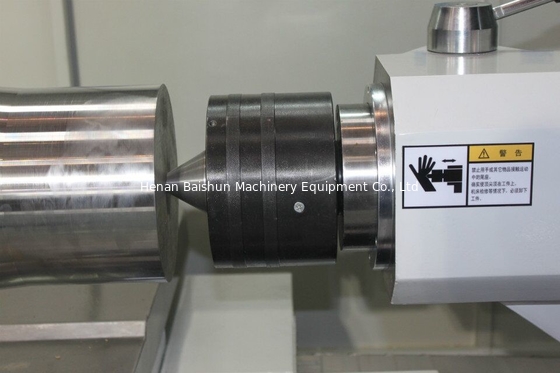

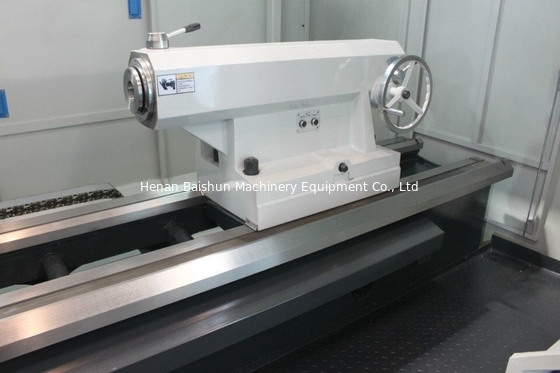

    Travel of tailstock quill mm 300
    Diameter of tailstock quill   φ160
    Taper hole of tailstock sleeve   Metric No. 80
    Rapid speed of tailstock mm/min 3000
    Controller   SEIMENS 802 DSL
    Servo motor Nm

    30 ( for X-Axis)

    38 ( for Z-Axis)

    power of main servo motor kW 22
    Adjusting speed device of main motor   YASAKAWA OF JAPAN
    Electrical power   380V - 3phase 50Hz
    Net dimension of the machine mm 7700×1900×2000
    Packing dimension of the machine mm

    1) 5360×2500×2280

    2) 2030×1110×1220

    N. W./ G. W. kg

    10,000/ 1) 7,500

    2) 5,500
