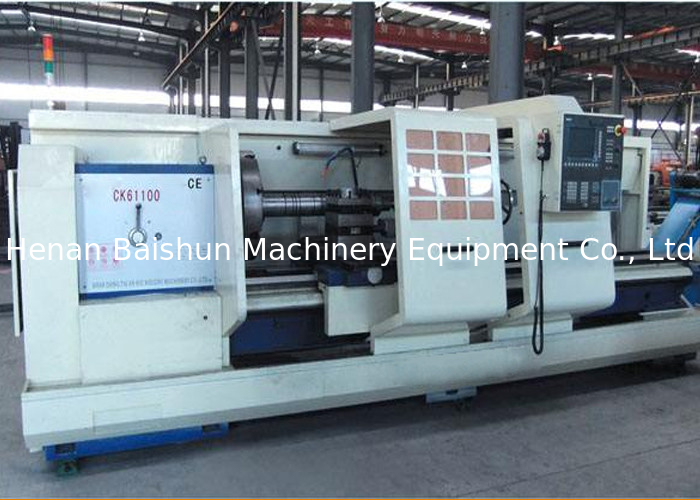

CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)

CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)

CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)

Product Details:

Place of Origin: China
Brand Name: BAISHUN
Certification: ISO9001:2008; CE.
Model Number: CK61100Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-35000
Packaging Details: Export standard package
Contact Now
Detailed Product Description
Swing Over Bed: 1000mm Swing Over Carriage: 610mm
Main Motor Power: 11/15kw CNC Control System: GSK980TDc/Siemens828D/Fanuc 0i Mate-Td

CK61100Q series cnc horizontal lathe machine (Guide rail width=600mm, 2.5 tons load)



Goods Description



CK61100Q CNC horizontal lathe machine tool is universal standard automatic machining equipment for metal processing,capable of semi finish machining and finish machining of machinery components and parts,with the main characters such as reliable structure,easy operating and economica for using

This series lathe machine mainly used for turning the internal and external cylindrical surface,

conical surface and other rotating surfaces,and turning internal and external pipe threads such as metric,inch,module,DP threads etc



Main Features:

Integral machine bed adopts high strength iron to realize high rigidity and precision;

Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

Carrigge and guide way contact surface pasted with Turcite B to maintain long-term accuracy.

CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)



CK6180/Ck6280 CNC horizontal lathe machine

CNC horizontal lathe series including CK6163, CK6180, CK61100Q and CK61125Q is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.

TECHNICAL PARAMETERS OF CK61100Q CNC LATHE

MODEL Data
CK6163 CK6180 CK61100Q CK61125Q
Max. swing over bed 630mm 800mm 1000mm 1250mm
Max. swing over carriage 350mm 480mm 610mm 850mm
Center distance 1500/2000/3000/4000mm
Spindle hole Ø105mm
Max.distance of moving tool-post
Longitude 1500 2000 3000 4000mm
Transverse 420mm 520mm
Spindle speed (number) 6-20,18-70,70-245,225-750
Main motor power 11 or 15KW
Speed of high-speed movement
Longitude 6m/min
Transverse 4m/min
Feed resoving factor
Longitude 0.01mm
Transverse 0.005mm
Tool numbers on tool-post 4.6.8
Positioning capacity
Longitude 0.04/1000mm
Transverse 0.03mm
Repeatablity
Longitude 0.016/1000mm
Transverse 0.012mm
Repeatablity accuracy of tool-post 0.005mm
NET WEIGHT
Center distance:1500mm 4300kg 4500kg 4700kg 4900kg
2000mm 4800kg 5000kg 5200kg 5400kg
FLOOR SPACE(LXWXH)
Center distance:1500mm 3460x1830x1730 3460x1910x1960





CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)

CK61100Q CNC horizontal lathe machine (Guide rail width=600mm, 2.5tons load)
