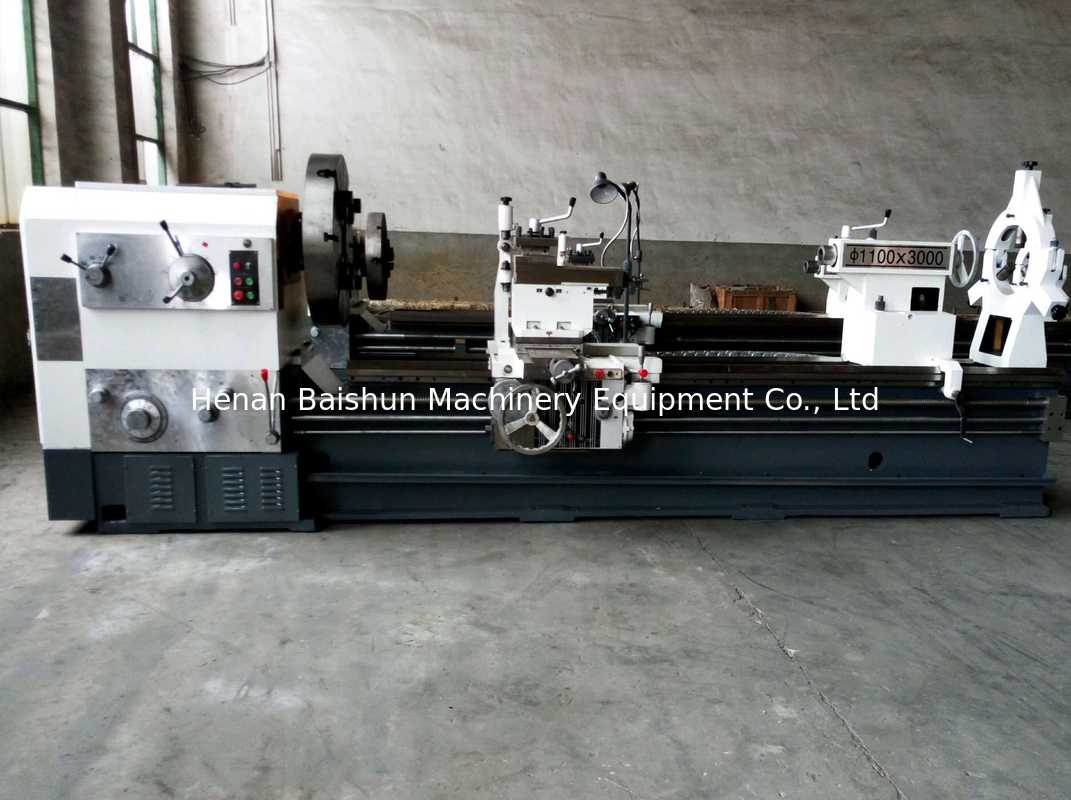

CW61100Q conventional horiozontal lathe machine for sale

CW61100Q conventional horiozontal lathe machine for sale

CW61100Q conventional horiozontal lathe machine for sale

Product Details:

Place of Origin:	China
Brand Name:	BAISHUN
Certification:	ISO9001:2008; CE.
Model Number:	CW61100Q

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	8000-12000
Packaging Details:	Export standard package

Contact Now

Detailed Product Description

Swing Over Bed:	1000mm	Swing Over Carriage:	700mm
Load Capacity:	2tons	Guide Rail Width:	600mm
Main Motor Power:	11kw

Machine advantage

This machine is very suitable for the use of batch processing of production and machine repair workshop.
The processed dimension accuracy of parts can reach level IT7 on this machine, and surface roughness can reach level 1.6.
The machine worktable Configuration with fast moving device, overload safety device, vertical and horizontal cross handle nut handle.

CW61100Q conventional horiozontal lathe machine for sale

CW61100Q conventional horiozontal lathe machine for sale

CW61100Q conventional horiozontal lathe machine for sale

Machine parameters

PRODUCT NAME	Unit	CDE6140	CDE6150	CDE6166	CW6163	CW6180	CW61100Q
Max. Swing over bed	mm	Φ400	Φ500	Φ660	Φ630	Φ800	Φ1000
Max. Swing over cross slide	mm	Φ220	Φ290	Φ430	Φ350	Φ480	Φ700
Max. Swing over in gap	mm	Φ700	Φ760	Φ910	Φ800	Φ1000	Φ1200
Gap length(from spindle nose)	mm	260			300
Max. Workpice length	mm	750/1000/1500/ 2000/2300			1000/1500/2000/ 3000/4000/5000/ 6000/8000		1000~ 5000
Spindle nose	-	C6			C11 or D11
Spindle bore	mm	Φ52			Φ100(C11) or Φ105(D11) (OP:Φ130)
Chuck size		-			Φ315	Φ400
Taper of spindle bore	-	MT6
Max. Spindle torque	N·M	1586			2400
Max. spindle ranges	rpm	11-1400(22 Speeds)			7.5-1000(18 Speeds)
Spindle centre height	mm	220	250	325	315	400	515
Spindle motor power	-	7.5KW/1440rpm(50Hz) OP:5.5KW/960rpm(60Hz)			11KW/1460rpm(50Hz) OP:15KW/1460rpm(50Hz)
Tailstock quil diameter	mm	Φ75			Φ100 OP:Φ125
Tailstock quil travel	mm	Φ150			Φ240
Longitudinal feed		0.035~2.842mm/r(63 Speeds) 0.0013~0.1057in/r(63 Speeds)			0.1~1.52mm/r(64 Speeds)
Cross feed		0.009~0.804mm/r 0.0003~0.0304in/r			0.05~0.76mm/r(64 Speeds)
Metric pitch	mm	0.5~240(66 Kinds) 0.5~160(43 Kinds)			0.5~240(52 Kinds) 1~256(52 Kinds)
Modulal pitch	mm	0.25~120(57 Kinds) 0.25~80(38 Kinds)			0.5~120(53 Kinds) 0.5~128(57 Kinds)
Imperial pitch	TPI	80~1/4(49 Kinds) 80~1/4(47 Kinds)			28~1(34 Kinds) 32~1(67 Kinds)
Diametral pitch	DP	160~7/16(50 Kinds) 160~7/16(48 Kinds)			28~1(24 Kinds) 32~1/8(57 Kinds)
Max. Tool shank size	mm	25x25			30x30
Travel of top slide	mm	150			200
Swivel angle of top slide	-	±45°			±90°
Overall dimensions (LxWxH)		Details please consult
Machine weight

Product Description

[ DATAN ] CW61100 series conventional lathe machine

Finished parts

[ DATAN ] CW61100 series conventional lathe machine
