CK8450x2500mm CNC Roll turning lathe machine for sale

CK8450x2500mm CNC Roll turning lathe machine for sale

    • CK8450x2500mm CNC Roll turning lathe machine for sale
    • CK8450x2500mm CNC Roll turning lathe machine for sale
    • CK8450x2500mm CNC Roll turning lathe machine for sale
    • CK8450x2500mm CNC Roll turning lathe machine for sale
    • CK8450x2500mm CNC Roll turning lathe machine for sale
  • CK8450x2500mm CNC Roll turning lathe machine for sale

    Product Details:

    Place of Origin: China
    Brand Name: BAISHUN
    Certification: ISO9001:2008
    Model Number: CK8450

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 68000-80000 USD
    Packaging Details: Export wooden case
    Delivery Time: 60 workdays
    Contact Now
    Detailed Product Description
    Turning Diameter: 500mm Processing Length: 2500mm
    Load Capacity: 3500kg

    CK8450x2500mm

    CNC Roll Turning Lathe Machine



    Product function

    CK8450 CNC roll turning lathe machine mainly used for semi-finish turning and finish turning processing of cast iron, steel and nonferrous metal roll. Cutters made of high-speed steel. This lathe can be used for turning and processing roll excircle, end faces, various complex pass profiles and curved surfaces, or for the processing of shaft parts made of materials such as cast iron, steel and nonferrous metal.

    CK8450x2500mm CNC Roll turning lathe machine for sale

    CK8450x2500mm CNC Roll turning lathe machine for sale



    Product function

    CK8450 CNC roll turning lathe machine mainly used for semi-finish turning and finish turning processing of cast iron, steel and nonferrous metal roll. Cutters made of high-speed steel. This lathe can be used for turning and processing roll excircle, end faces, various complex pass profiles and curved surfaces, or for the processing of shaft parts made of materials such as cast iron, steel and nonferrous metal.

    Machine Layout Figure



    CK8450x2500mm CNC Roll turning lathe machine for sale

    CK8450x2500mm CNC Roll turning lathe machine for sale

    CK8450x2500mm CNC Roll turning lathe machine for sale

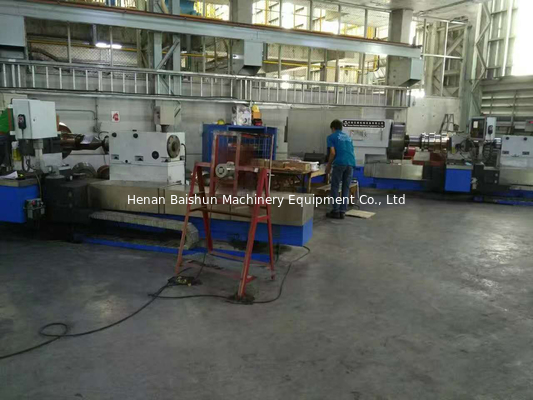

    Our user’s working spot.

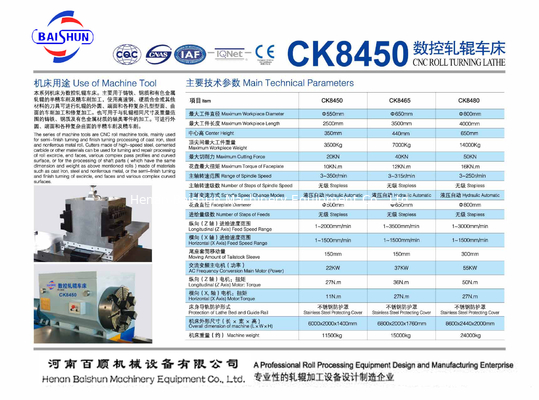

    Technical Specification

    Main parameters Unit CK8450x2500mm
    Max.turning diameter mm 500
    Max. turning length mm 2500
    Center height mm 350
    Max. Weight of workpiece kg 3500
    Range of spindle speed r/min 2-300
    Number of spindle speeds   Stepless
    Max. Cutting force KN 20
    Max. Torque of faceplate KN.m 10
    Faceplate diameter mm 500
    Longitudinal (Z axis) feed speed range mm/min 2-2000
    Horizontal (X axis) feed speed range mm/min 2-2000
    Horizontal (X axis) rapid move speed mm/min 2000
    Longitudinal (Z axis) rapid move speed mm/min 3000
    The tailstock sleeve diameter mm 180
    The tailstock sleeve travel mm 150
    Tailstock taper hole size MT 5
    Main motor power kw 22
    Spindle box lubricate motor power kw 0.75
    Knife rest centralization lubrication w 60
    Overall dimensions mm 6000X2245X1400
    Machine weight kg 11500
    CNC control system   GSK980TDC





    See more, please check:

    https://bsmachinery.en.alibaba.com/productgrouplist-805691141/Roll_Lathe_Machine.html?spm=a2700.8304367.maes88c8c1.19.436296eaAdfxvR





    Quotation:



    No. Description of Goods Quantity
    (SET)
    Unit Price
    (USD)
    Total Price
    (USD)
    1

    Name: CNC Roll Turning Lathe

    Model: CK8450x2500

    (100% brand new)

    Equip GSK980TDC CNC control system.





    1







    73,000



    73,000

    Total (USD) – Fob Qingdao port, China:

    (IN TOTAL: SEVENTY THREE THOUSAND UNITED STATES DOLLARS ONLY).

    73,000.00



    Warranty 12 months, but life time offer consult service
    Delivery time 90 days after receive the down payment
    Port of Loading Qingdao port, China
    Payment terms

    30% T/T as Down Payment (= $21,900 USD) ;

    70%T/T before Shipment(= $51,100 USD) .
